Manufacturer Part Number: | DL2-96RW-4B |
---|---|
Manufacturer: | ITT Cannon, LLC |
Product Category: | Backplane Connectors - Specialized |
Available Quantity: | 9244 Pieces |
Unit Price: | Quote by Email |

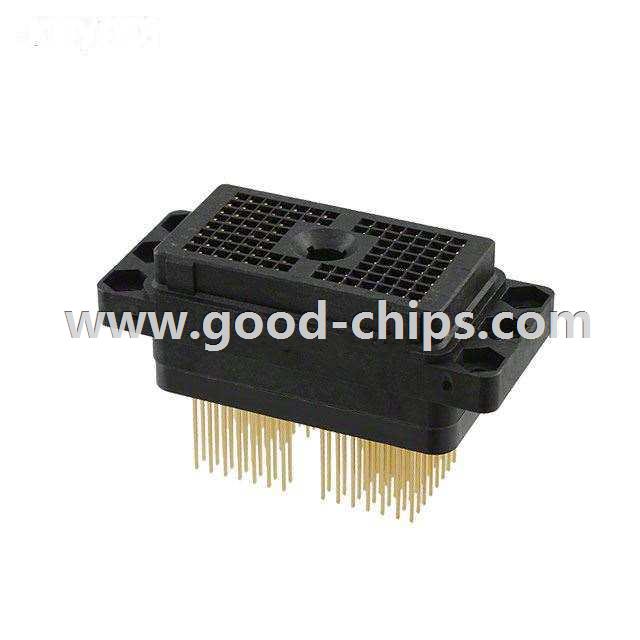

Description: | CONN 96POS ZIF WIRE WRAP RCPT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DL2-96RW-4B Datasheet |
Internal Part Number | 898-DL2-96RW-4B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | DL Series (ZIF) Connectors | |
Online Catalog | DL Series | |
Category | Connectors, Interconnects | |
Family | Backplane Connectors - Specialized | |
Manufacturer | ITT Cannon, LLC | |
Series | DL | |
Packaging | Bulk | |
Part Status | Active | |
Connector Usage | - | |
Connector Type | Receptacle, Hermaphroditic Contacts | |
Connector Style | - | |
Number of Positions | 96 | |
Number of Positions Loaded | All | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 8 | |
Number of Columns | - | |
Mounting Type | Panel Mount | |
Termination | Wire Wrap | |
Contact Layout, Typical | - | |
Features | Actuating Camshaft Socket, Zero Insertion Force (ZIF) | |
Contact Finish | Gold | |
Contact Finish Thickness | 50µin (1.27µm) | |
Color | Black | |
Current Rating | - | |
Material Flammability Rating | UL94 V-1 | |
Operating Temperature | -55°C ~ 105°C | |
Voltage Rating | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DL2-96RW-4B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DL2-96RW-4B is in stock for immediate shipping now. We are the distributor of ITT Cannon, LLC all series components. The condition of DL2-96RW-4B is new and unused, you can buy DL2-96RW-4B ITT Cannon, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DL2-96RW-4B.
