| Manufacturer Part Number: | DL2-96PW6A |
|---|---|
| Manufacturer: | ITT Cannon, LLC |
| Product Category: | Backplane Connectors - Specialized |
| Available Quantity: | 9054 Pieces |
| Unit Price: | Quote by Email |

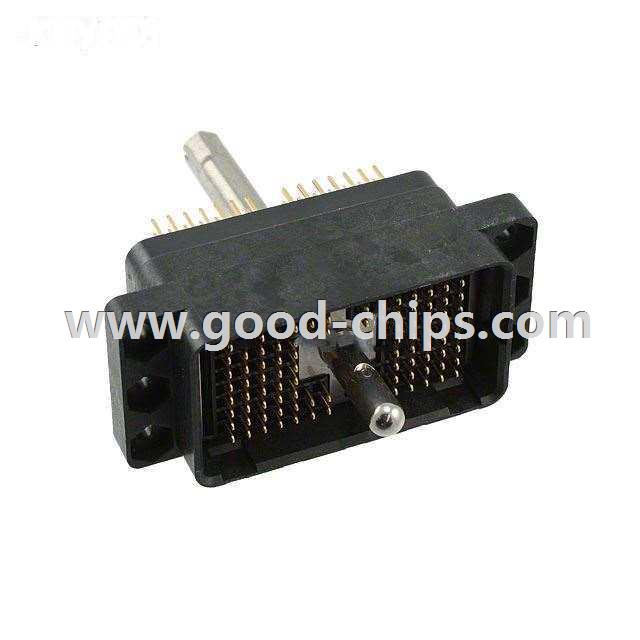

| Description: | CONN 96POS ZIF PCB PLUG |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DL2-96PW6A Datasheet |
| Internal Part Number | 898-DL2-96PW6A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | DL Series (ZIF) Connectors | |
| Online Catalog | DL Series | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Specialized | |
| Manufacturer | ITT Cannon, LLC | |
| Series | DL | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Usage | - | |
| Connector Type | Plug, Hermaphroditic Contacts | |
| Connector Style | - | |
| Number of Positions | 96 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 8 | |
| Number of Columns | - | |
| Mounting Type | Panel Mount | |
| Termination | Solder | |
| Contact Layout, Typical | - | |
| Features | Actuating Camshaft, Zero Insertion Force (ZIF) | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 50µin (1.27µm) | |
| Color | Black | |
| Current Rating | - | |
| Material Flammability Rating | UL94 V-1 | |
| Operating Temperature | -55°C ~ 105°C | |
| Voltage Rating | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DL2-96PW6A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DL2-96PW6A is in stock for immediate shipping now. We are the distributor of ITT Cannon, LLC all series components. The condition of DL2-96PW6A is new and unused, you can buy DL2-96PW6A ITT Cannon, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DL2-96PW6A.
