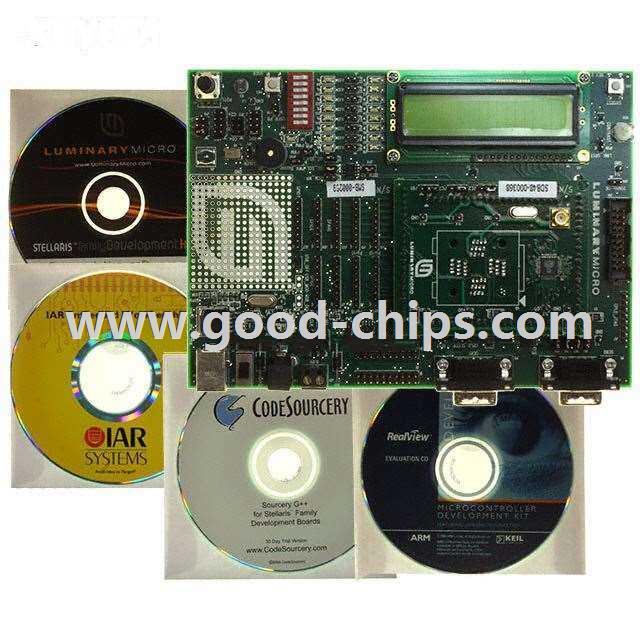

| Manufacturer Part Number: | DK-LM3S811 |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Evaluation Boards - Embedded - MCU, DSP |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LM3S315, LM3S316, LM3S611, LM3S613, LM3S811 Stellaris® MCU 32-Bit ARM® Cortex®-M3 Embedded Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DK-LM3S811 Datasheet |
| Internal Part Number | 898-DK-LM3S811 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Embedded - MCU, DSP | |
| Manufacturer | Texas Instruments | |
| Series | Stellaris® | |
| Part Status | Obsolete | |
| Board Type | Evaluation Platform | |
| Type | MCU 32-Bit | |
| Core Processor | ARM® Cortex®-M3 | |
| Operating System | RTOS | |
| Platform | - | |
| For Use With/Related Products | LM3S315, LM3S316, LM3S611, LM3S613, LM3S811 | |
| Mounting Type | Fixed | |
| Contents | Board(s), Cable(s), LCD, Accessories | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DK-LM3S811 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DK-LM3S811 is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of DK-LM3S811 is new and unused, you can buy DK-LM3S811 Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DK-LM3S811.
