| Manufacturer Part Number: | DK-57VTS-LPC1788 |
|---|---|
| Manufacturer: | Future Designs Inc. |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9014 Pieces |
| Unit Price: | Quote by Email |
| Description: | LPC1788 LPC17xx Touch Screen Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DK-57VTS-LPC1788 Datasheet |
| Internal Part Number | 898-DK-57VTS-LPC1788 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to LPC1700 Series | |
| Design Resources | Development Tool Selector | |
| Online Catalog | Touch Screen Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | Future Designs Inc. | |
| Series | LPC17xx | |
| Part Status | Active | |
| Sensor Type | Touch Screen | |
| Sensing Range | - | |
| Interface | CAN, I²C, RS-232 | |
| Sensitivity | - | |
| Voltage - Supply | 5V | |
| Embedded | Yes, MCU, 32-Bit | |

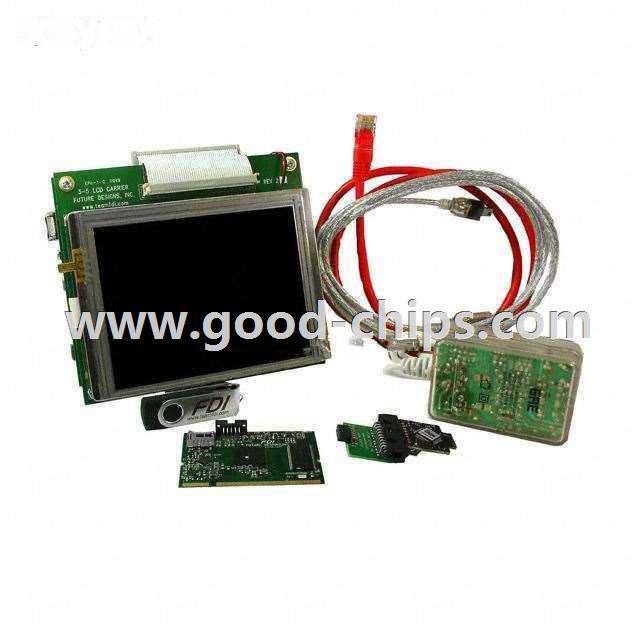

| Supplied Contents | 3 Boards, Cables, Power Supply | |
| Utilized IC / Part | LPC1788 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DK-57VTS-LPC1788 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DK-57VTS-LPC1788 is in stock for immediate shipping now. We are the distributor of Future Designs Inc. all series components. The condition of DK-57VTS-LPC1788 is new and unused, you can buy DK-57VTS-LPC1788 Future Designs Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DK-57VTS-LPC1788.
