| Manufacturer Part Number: | DK-136M-3 |
|---|---|
| Manufacturer: | Luminus Devices Inc. |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CBT, PT Series PhlatLight® Series Lighting, LED Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DK-136M-3 Datasheet |
| Internal Part Number | 898-DK-136M-3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Luminus Devices Inc. | |
| Series | PhlatLight® | |
| Part Status | Active | |
| Main Purpose | Lighting, LED | |
| Embedded | - | |
| Utilized IC / Part | CBT, PT Series | |
| Primary Attributes | - | |
| Secondary Attributes | - | |

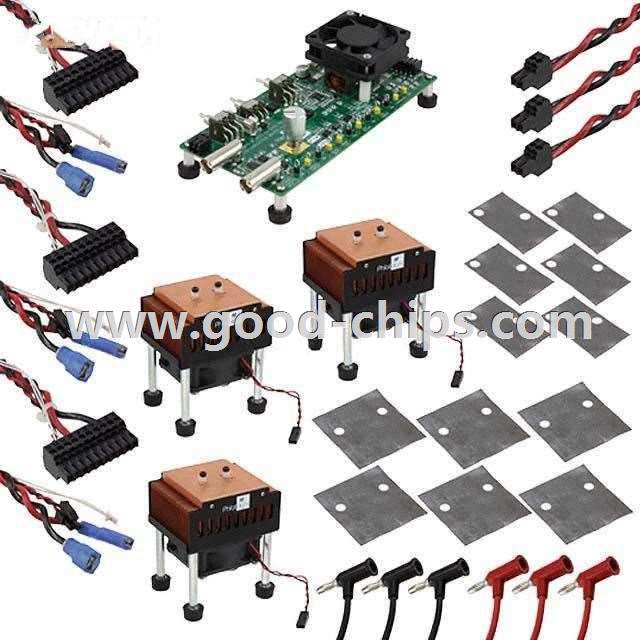

| Supplied Contents | 2 Boards, Cables, Documentation, Heat Sink, Hardware | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DK-136M-3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DK-136M-3 is in stock for immediate shipping now. We are the distributor of Luminus Devices Inc. all series components. The condition of DK-136M-3 is new and unused, you can buy DK-136M-3 Luminus Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DK-136M-3.
