| Manufacturer Part Number: | DK-04F0-0396 |
|---|---|
| Manufacturer: | Lighting Science Group Corporation |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Titan RGB LED Light Engine Atlas™ Series Lighting, LED Light Engine, RGB Evaluation Board |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DK-04F0-0396 Datasheet |
| Internal Part Number | 898-DK-04F0-0396 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Lighting Science Group Corporation | |
| Series | Atlas™ | |
| Part Status | Obsolete | |
| Main Purpose | Lighting, LED Light Engine, RGB | |
| Embedded | No | |
| Utilized IC / Part | Titan RGB LED Light Engine | |
| Primary Attributes | 350mA RGB Light Engine with Heat Sink, RGB 12V Driver, 12V Power Supply | |
| Secondary Attributes | 30° Lens and 45° Lens | |

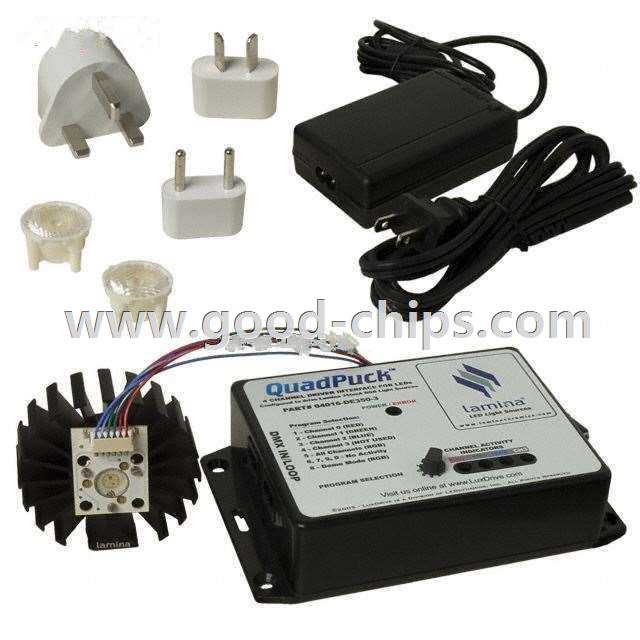

| Supplied Contents | 350mA RGB Light Engine, Heat Sink, 2 Lenses, 12V RGB LED Driver, Power Supply with Plug Adapters | |
| Standard Package | 5 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DK-04F0-0396 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DK-04F0-0396 is in stock for immediate shipping now. We are the distributor of Lighting Science Group Corporation all series components. The condition of DK-04F0-0396 is new and unused, you can buy DK-04F0-0396 Lighting Science Group Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DK-04F0-0396.
