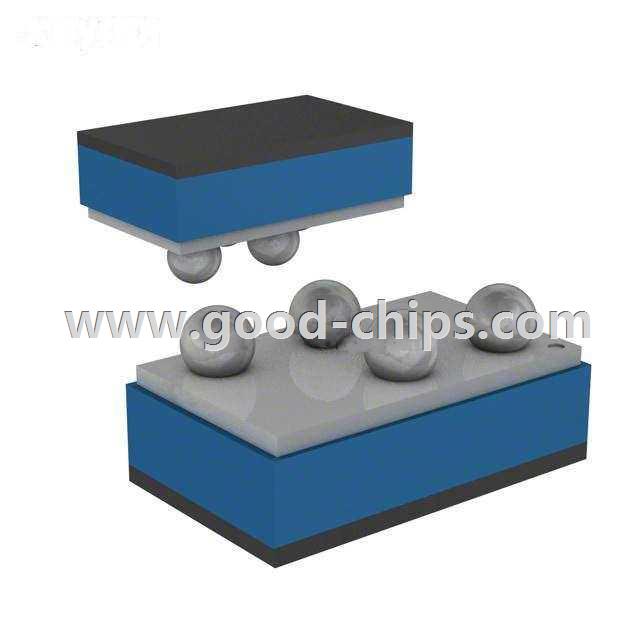

| Manufacturer Part Number: | DIP1524-01D3 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | RF Diplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Diplexor 1573.42MHz ~ 1605.89MHz, 2.4GHz ~ 2.7GHz 4-UFBGA, FCBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DIP1524-01D3 Datasheet |
| Internal Part Number | 898-DIP1524-01D3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | DIP1524-01D3 View All Specifications | |
| Product Training Modules | Internet of Things and the ST Portfolio of Wireless Modules Dynamic NFC / RFID Tag WiFi Modules Overview | |
| Design Resources | IoT Product Selector | |
| Online Catalog | DIP1524-01D3 | |
| Category | RF/IF and RFID | |
| Family | RF Diplexers | |
| Manufacturer | STMicroelectronics | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency Bands (Low / High) | 1573.42MHz ~ 1605.89MHz, 2.4GHz ~ 2.7GHz | |
| Low Band Attenuation (min / max dB) | 20.00dB / - | |
| High Band Attenuation (min / max dB) | 18.00dB / - | |
| Return Loss (Low Band / High Band) | 10dB, 20dB | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-UFBGA, FCBGA | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DIP1524-01D3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DIP1524-01D3 is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of DIP1524-01D3 is new and unused, you can buy DIP1524-01D3 STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DIP1524-01D3.
