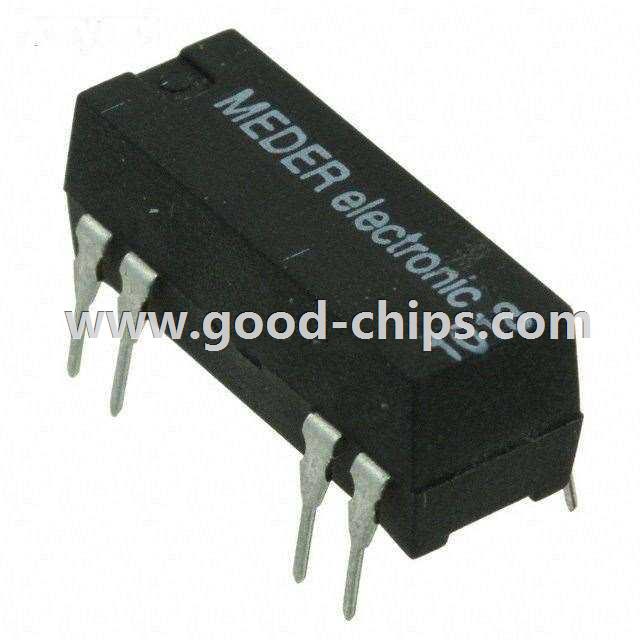

| Manufacturer Part Number: | DIP05-1A72-12D |
|---|---|
| Manufacturer: | Standex-Meder Electronics |
| Product Category: | Signal Relays, Up to 2 Amps |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Reed Relay SPST-NO (1 Form A) Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DIP05-1A72-12D Datasheet |
| Internal Part Number | 898-DIP05-1A72-12D | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Magnetic Mapping | |
| Category | Relays | |
| Family | Signal Relays, Up to 2 Amps | |
| Manufacturer | Standex-Meder Electronics | |
| Series | DIP | |
| Packaging | Tube | |
| Part Status | Active | |
| Relay Type | Reed | |
| Coil Type | Non Latching | |
| Coil Current | 10mA | |
| Coil Voltage | 5VDC | |
| Contact Form | SPST-NO (1 Form A) | |
| Contact Rating (Current) | 1A | |
| Switching Voltage | 200VAC, 200VDC - Max | |
| Turn On Voltage (Max) | 3.5 VDC | |
| Turn Off Voltage (Min) | 0.75 VDC | |
| Operate Time | 0.5ms | |
| Release Time | 0.1ms | |
| Features | Diode | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Contact Material | - | |
| Coil Power | 50 mW | |
| Coil Resistance | 500 Ohms | |
| Operating Temperature | -20°C ~ 70°C | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DIP05-1A72-12D | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DIP05-1A72-12D is in stock for immediate shipping now. We are the distributor of Standex-Meder Electronics all series components. The condition of DIP05-1A72-12D is new and unused, you can buy DIP05-1A72-12D Standex-Meder Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DIP05-1A72-12D.
