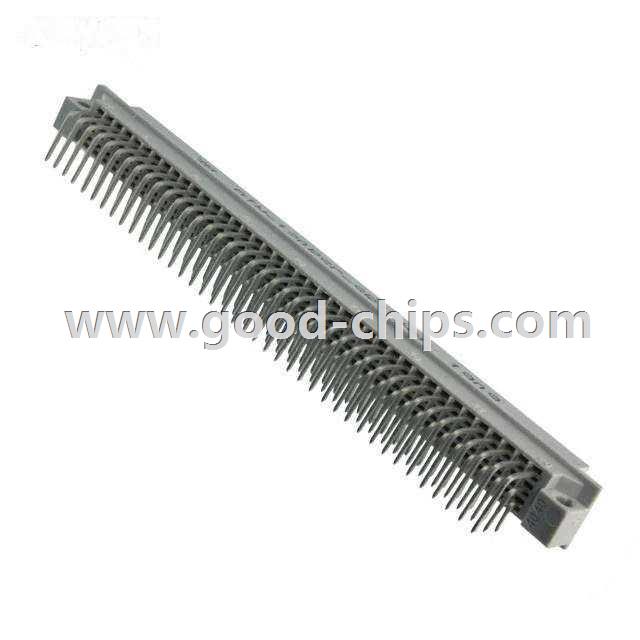

| Manufacturer Part Number: | DIN-120RSC-SR1-HM |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Backplane Connectors - DIN 41612 |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN DIN SOCKET 120POS R/A GOLD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DIN-120RSC-SR1-HM Datasheet |
| Internal Part Number | 898-DIN-120RSC-SR1-HM | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | DIN-120RSC-SR1-XX.stp DIN-120RSC-SR1-XX.igs DIN-120RSC-SR1-XX.x_t | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - DIN 41612 | |
| Manufacturer | 3M | |
| Series | DIN 41612 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 120 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 3 | |
| Style | R | |
| Level, Class | - | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3µin (0.08µm) | |
| Operating Temperature | -55°C ~ 125°C | |
| Current Rating | 3A | |
| Material Flammability Rating | UL94 V-0 | |
| Material - Insulation | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | |
| Standard Package | 576 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DIN-120RSC-SR1-HM | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DIN-120RSC-SR1-HM is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of DIN-120RSC-SR1-HM is new and unused, you can buy DIN-120RSC-SR1-HM 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DIN-120RSC-SR1-HM.
