Manufacturer Part Number: | DIN-096SH-457-Q |
---|---|
Manufacturer: | 3M |
Product Category: | Backplane Connectors - Housings |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

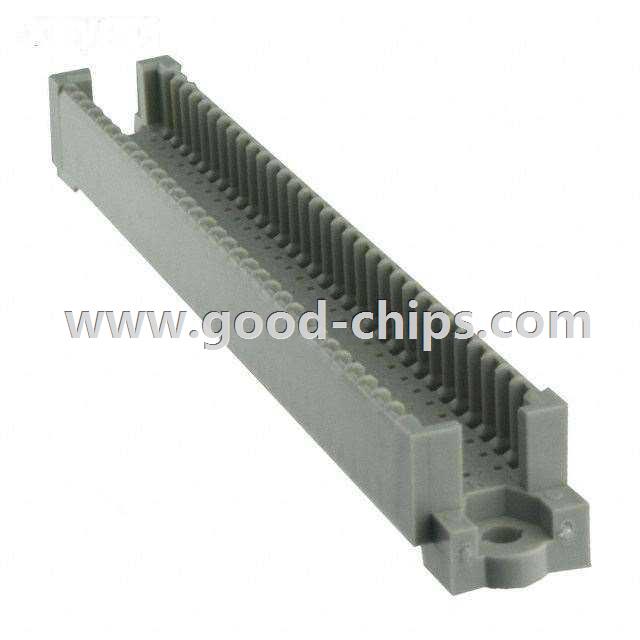

Description: | 96 Position Shroud for Male Pins Connector Gray Backplane |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DIN-096SH-457-Q Datasheet |
Internal Part Number | 898-DIN-096SH-457-Q | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | DIN-096SH-457-X.igs DIN-096SH-457-X.x_t DIN-096SH-457-X.stp | |
Category | Connectors, Interconnects | |
Family | Backplane Connectors - Housings | |
Manufacturer | 3M | |
Series | DIN 41612 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Shroud for Male Pins | |
Connector Style | Backplane | |
Number of Positions | 96 | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 3 | |
Mounting Type | - | |
Connector Usage | - | |
Features | - | |
Color | Gray | |
Note | Contacts Not Provided | |
Standard Package | 600 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DIN-096SH-457-Q | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DIN-096SH-457-Q is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of DIN-096SH-457-Q is new and unused, you can buy DIN-096SH-457-Q 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DIN-096SH-457-Q.
