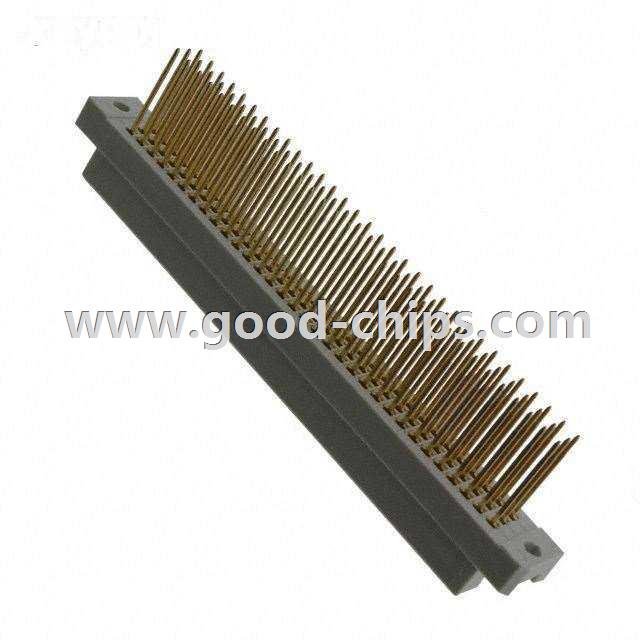

DIN-096CSC-W-KV

DIN-096CSC-W-KV
Manufacturer Part Number:DIN-096CSC-W-KV
Manufacturer:
Product Category:Backplane Connectors - DIN 41612
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:DIN/96P/R-HDR
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: DIN-096CSC-W-KV Datasheet
DIN-096CSC-W-KV´s Parameters
Category
Internal Part Number898-DIN-096CSC-W-KV
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
  • DIN-096RPC-S1-HM-ND
  • 3M
  • CONN DIN PLUG 96POS VERT GOLDUnit Price6.36000
  • 3M10883-ND
  • 3M
  • CONN DIN PLUG 96POS R/A GOLDUnit Price6.50000
  • 3M15395-ND
  • 3M
  • CONN DIN PLUG 96POS R/A GOLDUnit Price6.62000
  • 3M15396-ND
  • 3M
  • CONN DIN PLUG 96POS R/A GOLDUnit Price9.11000
  • View More
    Connectors, Interconnects
    FamilyBackplane Connectors - DIN 41612
    Manufacturer3M
    SeriesDIN 41612
    PackagingBulk
    Part StatusActive
    Connector TypeReceptacle, Female Sockets
    Number of Positions96
    Number of Positions LoadedAll
    Pitch0.100" (2.54mm)
    Number of Rows3
    StyleC
    Level, Class-
    Mounting TypeThrough Hole
    TerminationSolder
    Features-
    Contact FinishGold
    Contact Finish Thickness30µin (0.76µm)
    Operating Temperature-55°C ~ 125°C
    Current Rating3A
    Material Flammability RatingUL94 V-0
    Material - InsulationPolybutylene Terephthalate (PBT), Polyester, Glass Filled
    Standard Package 504
    Weight0.001 KG
    ApplicationEmail for details
    Replacement PartDIN-096CSC-W-KV
    Country of OriginUSA / JAPAN / Philippines / Malaysia
    MOQ1 Piece
    Picture / Image / PhotoSend via email

    DIN-096CSC-W-KV is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of DIN-096CSC-W-KV is new and unused, you can buy DIN-096CSC-W-KV 3M with us at a very low price and quick delivery.

    Please kindly send us an email if you have any demands for DIN-096CSC-W-KV.
