Manufacturer Part Number: | DIN-096CPC-SR1-TR |
---|---|
Manufacturer: | 3M |
Product Category: | Backplane Connectors - DIN 41612 |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

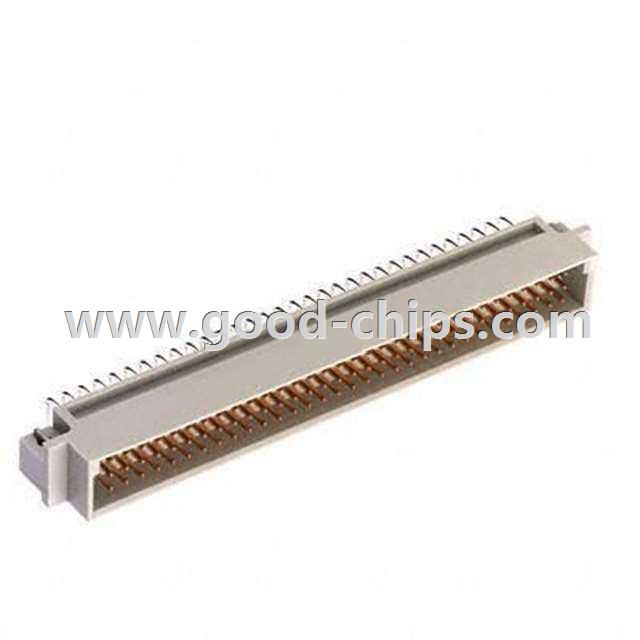

Description: | CONN DIN PLUG 96POS R/A GOLD |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DIN-096CPC-SR1-TR Datasheet |
Internal Part Number | 898-DIN-096CPC-SR1-TR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Standard Package | 100 | |
Category | Connectors, Interconnects | |
Family | Backplane Connectors - DIN 41612 | |
Manufacturer | 3M | |
Series | DIN 41612 | |
Packaging | Bulk | |
Part Status | Obsolete | |
Connector Type | Plug, Male Pins | |
Number of Positions | 96 | |
Number of Positions Loaded | All | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 3 | |
Style | C | |
Level, Class | - | |
Mounting Type | Through Hole, Right Angle | |
Termination | Solder | |
Features | - | |
Contact Finish | Gold | |
Contact Finish Thickness | 3µin (0.08µm) | |
Operating Temperature | -55°C ~ 125°C | |
Current Rating | 3A | |
Material Flammability Rating | UL94 V-0 | |
Material - Insulation | Polybutylene Terephthalate (PBT), Glass Filled | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DIN-096CPC-SR1-TR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DIN-096CPC-SR1-TR is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of DIN-096CPC-SR1-TR is new and unused, you can buy DIN-096CPC-SR1-TR 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DIN-096CPC-SR1-TR.
