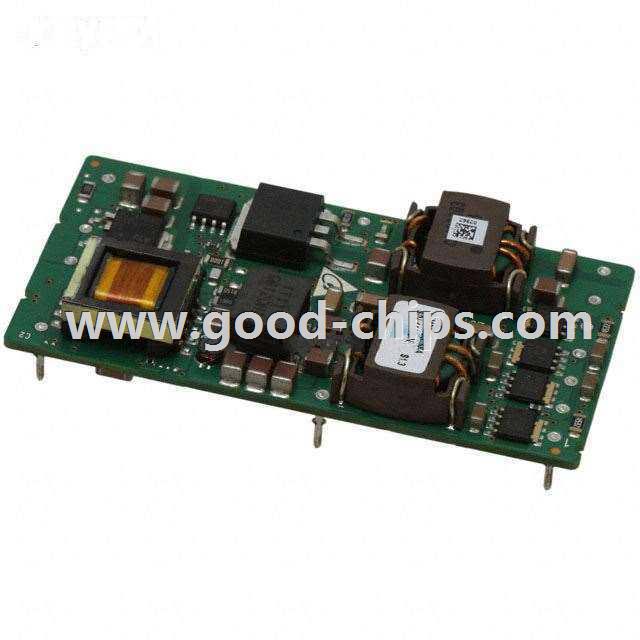

Manufacturer Part Number: | DIM3R3300SFA |
---|---|
Manufacturer: | Delta Electronics |
Product Category: | DC DC Converters |
Available Quantity: | 9082 Pieces |
Unit Price: | Quote by Email |
Description: | MODULE POWER DC/DC 3.3V 2.4A |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DIM3R3300SFA Datasheet |
Internal Part Number | 898-DIM3R3300SFA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | DC/DC Converters – Delta Product Groups | |
Online Catalog | Delphi DIM Series | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Delta Electronics | |
Series | Delphi DIM | |
Packaging | Tray | |
Part Status | Active | |
Type | Isolated Module | |
Number of Outputs | 2 | |
Voltage - Input (Min) | 36V | |
Voltage - Input (Max) | 75V | |
Voltage - Output 1 | 36 ~ 75 V | |
Voltage - Output 2 | 3.3V | |
Voltage - Output 3 | - | |
Current - Output (Max) | 2.4A | |
Power (Watts) - Manufacture Series | 8W | |
Voltage - Isolation | 1.5kV (1500V) | |
Applications | ITE (Commercial) | |
Features | OCP, OTP, OVP, UVLO | |
Mounting Type | Through Hole | |
Package / Case | 14-DIP Module | |
Size / Dimension | 2.78" L x 1.45" W x 0.50" H (70.6mm x 36.8mm x 12.7mm) | |
Operating Temperature | -40°C ~ 117°C | |
Efficiency | 98% | |
Power (Watts) - Max | 7.92W | |
Standard Package | 45 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DIM3R3300SFA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DIM3R3300SFA is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of DIM3R3300SFA is new and unused, you can buy DIM3R3300SFA Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DIM3R3300SFA.
