| Manufacturer Part Number: | DG406DN-T1 |
|---|---|
| Manufacturer: | Vishay Siliconix |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1 Circuit IC Switch 16:1 100 Ohm 28-PLCC (11.51x11.51) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DG406DN-T1 Datasheet |
| Internal Part Number | 898-DG406DN-T1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Vishay Siliconix | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Circuit | - | |
| Multiplexer/Demultiplexer Circuit | 16:1 | |
| Number of Circuits | 1 | |
| On-State Resistance (Max) | 100 Ohm | |
| Channel-to-Channel Matching (ΔRon) | 5 Ohm | |
| Voltage - Supply, Single (V+) | 12V | |
| Voltage - Supply, Dual (V±) | ±5 V ~ 20 V | |
| Switch Time (Ton, Toff) (Max) | 200ns, 150ns | |
| -3db Bandwidth | - | |
| Charge Injection | 15pC | |
| Channel Capacitance (CS(off), CD(off)) | 8pF, 130pF | |
| Current - Leakage (IS(off)) (Max) | 500pA | |
| Crosstalk | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

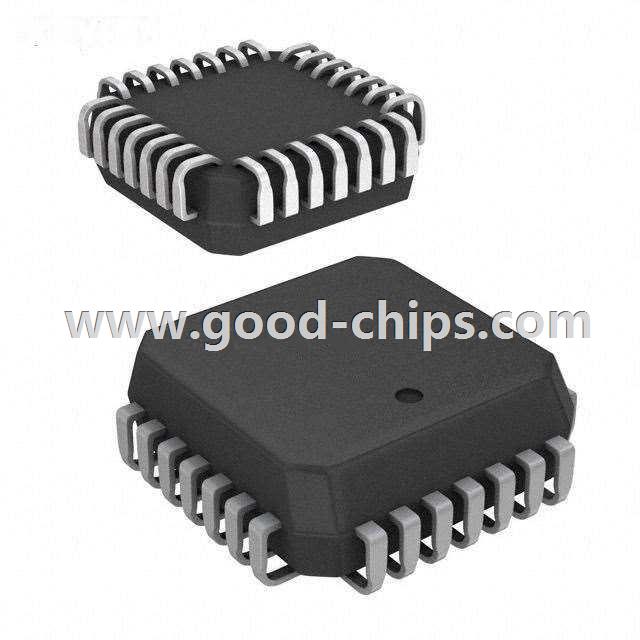

| Package / Case | 28-LCC (J-Lead) | |
| Supplier Device Package | 28-PLCC (11.51x11.51) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DG406DN-T1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DG406DN-T1 is in stock for immediate shipping now. We are the distributor of Vishay Siliconix all series components. The condition of DG406DN-T1 is new and unused, you can buy DG406DN-T1 Vishay Siliconix with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DG406DN-T1.
