| Manufacturer Part Number: | DG2727DN-T1-E4 |
|---|---|
| Manufacturer: | Vishay Siliconix |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Circuit IC Switch 1:1 1 Ohm 8-miniQFN (1.4x1.4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DG2727DN-T1-E4 Datasheet |
| Internal Part Number | 898-DG2727DN-T1-E4 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | PCN-SIL-1022014 Rev 0 24/Nov/2014 SIL-102-2014-Rev-2 03/Mar/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Vishay Siliconix | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Discontinued | |
| Switch Circuit | SPST - NO | |
| Multiplexer/Demultiplexer Circuit | 1:1 | |
| Number of Circuits | 2 | |
| On-State Resistance (Max) | 1 Ohm | |
| Channel-to-Channel Matching (ΔRon) | 100 mOhm | |
| Voltage - Supply, Single (V+) | 1.6 V ~ 4.3 V | |
| Voltage - Supply, Dual (V±) | - | |
| Switch Time (Ton, Toff) (Max) | 67ns, 40ns | |
| -3db Bandwidth | 252MHz | |
| Charge Injection | 1.2pC | |
| Channel Capacitance (CS(off), CD(off)) | 31pF, 31pF | |
| Current - Leakage (IS(off)) (Max) | 100nA | |
| Crosstalk | -64dB @ 1MHz | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

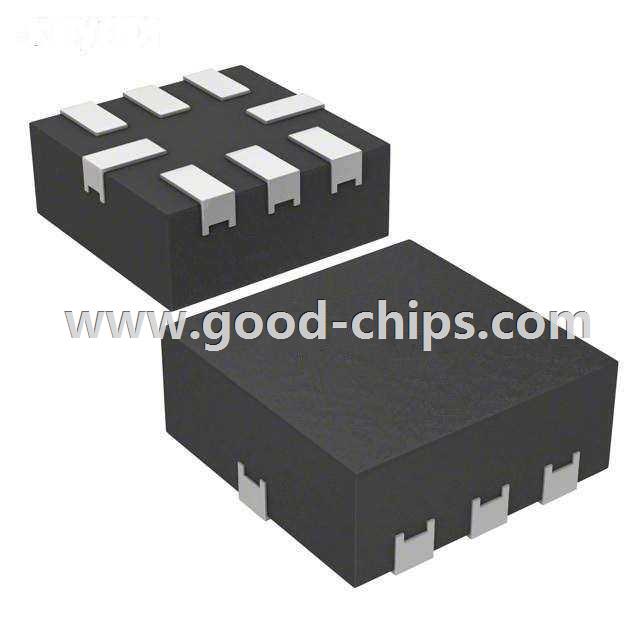

| Package / Case | 8-UFQFN | |
| Supplier Device Package | 8-miniQFN (1.4x1.4) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DG2727DN-T1-E4 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DG2727DN-T1-E4 is in stock for immediate shipping now. We are the distributor of Vishay Siliconix all series components. The condition of DG2727DN-T1-E4 is new and unused, you can buy DG2727DN-T1-E4 Vishay Siliconix with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DG2727DN-T1-E4.
