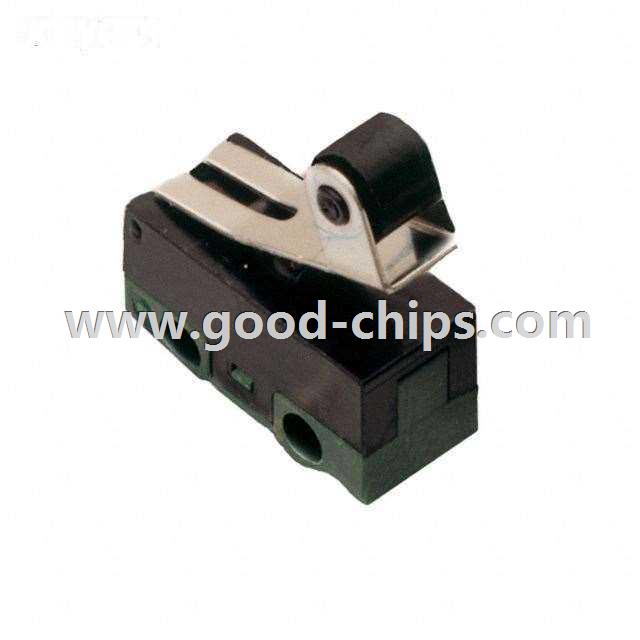

| Manufacturer Part Number: | DG23-B3RA |
|---|---|
| Manufacturer: | Cherry |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION SPDT 50MA 30V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DG23-B3RA Datasheet |
| Internal Part Number | 898-DG23-B3RA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | Cherry | |
| Series | DG | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 50mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 30V | |
| Actuator Type | Lever, Roller | |
| Mounting Type | Through Hole, Right Angle | |
| Termination Style | PC Pin | |
| Ingress Protection | IP40 | |
| Features | - | |
| Operating Force, Torque | 60gf | |
| Release Force | - | |
| Pretravel | 0.060" (1.5mm) | |
| Differential Travel | 0.020" (0.5mm) | |
| Overtravel | 0.022" (0.55mm) | |
| Operating Position | 0.488" (12.4mm) | |
| Mechanical Life | 1,000,000 Cycles | |
| Electrical Life | 200,000 Cycles | |
| Operating Temperature | -25°C ~ 85°C | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DG23-B3RA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DG23-B3RA is in stock for immediate shipping now. We are the distributor of Cherry all series components. The condition of DG23-B3RA is new and unused, you can buy DG23-B3RA Cherry with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DG23-B3RA.
