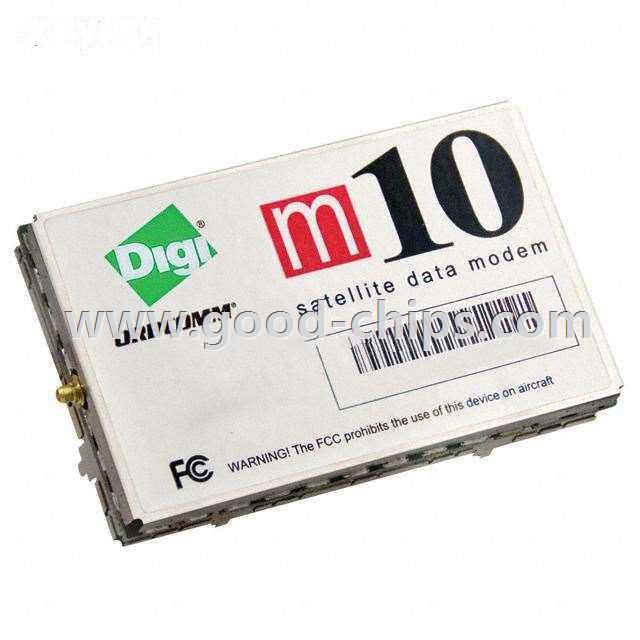

Manufacturer Part Number: | DG-M10 |
---|---|
Manufacturer: | Digi International |
Product Category: | RF Transceiver Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF TXRX MOD NAVIGATION MMCX ANT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DG-M10 Datasheet |
Internal Part Number | 898-DG-M10 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Antenna Design and Integration Fundamentals | |
Design Resources | Development Tool Selector IoT Product Selector | |
PCN Obsolescence/ EOL | Digi m10™ Devices 11/Oct/2013 | |
Category | RF/IF and RFID | |
Family | RF Transceiver Modules | |
Manufacturer | Digi International | |
Series | - | |
Packaging | Bulk | |
Part Status | Obsolete | |
RF Family/Standard | Navigation | |
Protocol | ORBCOMM | |
Modulation | - | |
Frequency | 137MHz ~ 138MHz, 148MHz ~ 150MHz | |
Data Rate | - | |
Power - Output | 37dBm | |
Sensitivity | -119dBm | |
Serial Interfaces | SPI, UART | |
Antenna Type | Not Included, MMCX | |
Memory Size | - | |
Voltage - Supply | 9 V ~ 18 V | |
Current - Receiving | 70mA ~ 80mA | |
Current - Transmitting | 1.5A | |
Mounting Type | Surface Mount | |
Operating Temperature | -40°C ~ 85°C | |
Package / Case | Module | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DG-M10 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DG-M10 is in stock for immediate shipping now. We are the distributor of Digi International all series components. The condition of DG-M10 is new and unused, you can buy DG-M10 Digi International with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DG-M10.
