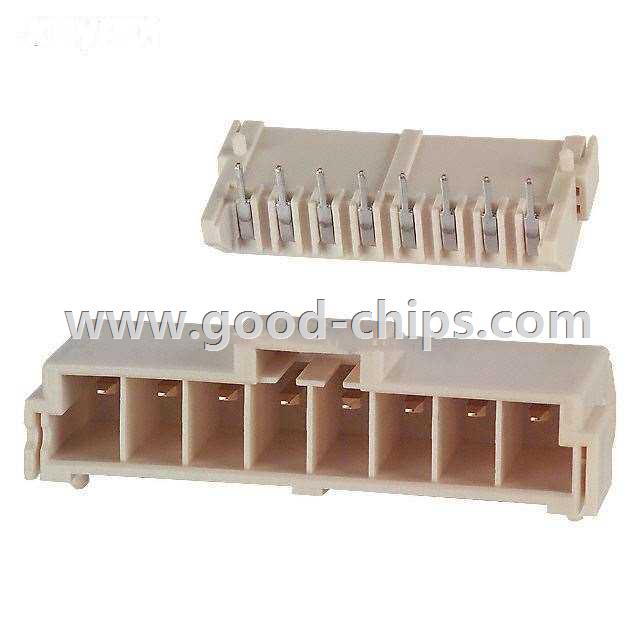

DF7-8P-3.96DS(01)

DF7-8P-3.96DS(01)
Manufacturer Part Number:DF7-8P-3.96DS(01)
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:8 Positions Header, Shrouded Connector 0.156" (3.96mm) Through Hole, Right Angle Gold
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: DF7-8P-3.96DS(01) Datasheet
DF7-8P-3.96DS(01)´s Parameters
Internal Part Number898-DF7-8P-3.96DS(01)
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerHirose Electric Co Ltd
SeriesDF7
PackagingBulk
Part StatusObsolete
Contact TypeMale Pin
Connector TypeHeader, Shrouded
Number of Positions8
Number of Positions LoadedAll
Pitch0.156" (3.96mm)
Number of Rows1
Row Spacing-
Contact Mating Length0.276" (7.00mm)
Mounting TypeThrough Hole, Right Angle
TerminationSolder
Fastening TypeLatch Holder
FeaturesBoard Guide
Contact FinishGold
Contact Finish Thickness-
ColorBeige
Standard Package 100
Weight0.001 KG
ApplicationEmail for details
Replacement PartDF7-8P-3.96DS(01)
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

DF7-8P-3.96DS(01) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of DF7-8P-3.96DS(01) is new and unused, you can buy DF7-8P-3.96DS(01) Hirose Electric Co Ltd with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for DF7-8P-3.96DS(01).
