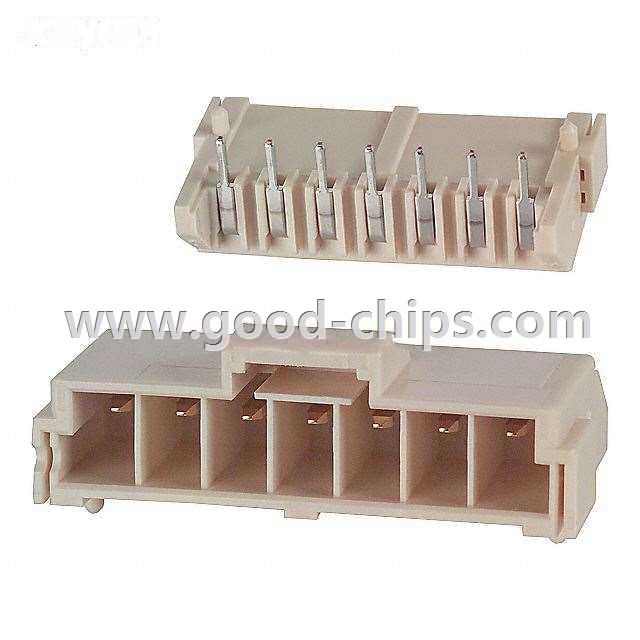

.jpg)
| Manufacturer Part Number: | DF7-7P-3.96DS(01) |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 7 Positions Header, Shrouded Connector 0.156" (3.96mm) Through Hole, Right Angle Gold |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DF7-7P-3.96DS(01) Datasheet |
| Internal Part Number | 898-DF7-7P-3.96DS(01) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | DF7 | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 7 | |
| Number of Positions Loaded | All | |
| Pitch | 0.156" (3.96mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | 0.276" (7.00mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | Latch Holder | |
| Features | Board Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Color | Beige | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DF7-7P-3.96DS(01) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DF7-7P-3.96DS(01) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of DF7-7P-3.96DS(01) is new and unused, you can buy DF7-7P-3.96DS(01) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DF7-7P-3.96DS(01).
