Manufacturer Part Number: | DF62J12S2AQF |
---|---|
Manufacturer: | C&K Components |
Product Category: | Rocker Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

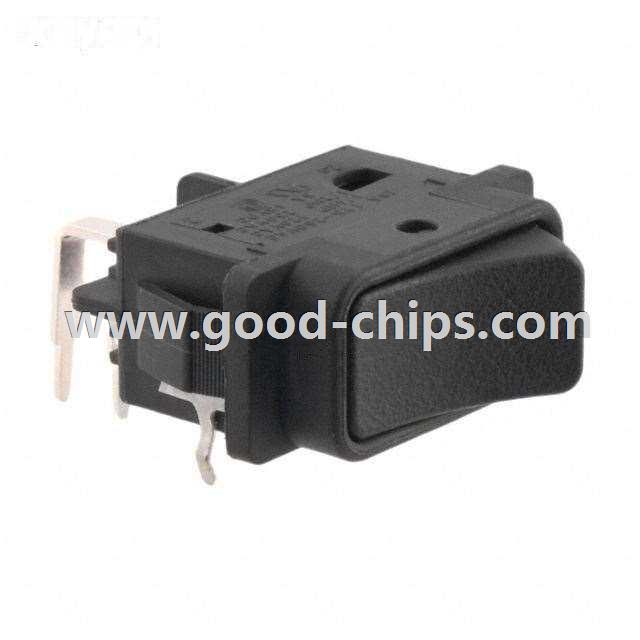

Description: | Rocker Switch DPST 16A (AC), 6A (DC) 125V Panel Mount, Snap-In, Right Angle |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DF62J12S2AQF Datasheet |
Internal Part Number | 898-DF62J12S2AQF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Introduction to Electromechanical Switches Industrial Switches for Safety and Security | |
PCN Obsolescence/ EOL | DF Series Rockers 22/Jul/2013 | |
PCN Assembly/Origin | Series Transfer 26/Nov/2012 | |
Category | Switches | |
Family | Rocker Switches | |
Manufacturer | C&K Components | |
Series | DF | |
Packaging | Bulk | |
Part Status | Obsolete | |
Circuit | DPST | |
Switch Function | On-Off | |
Current Rating | 16A (AC), 6A (DC) | |
Voltage Rating - AC | 125V | |
Voltage Rating - DC | 48V | |
Actuator Type | Concave (Curved) | |
Color - Actuator/Cap | Black | |
Actuator Marking | No Marking | |
Illumination Type, Color | - | |
Illumination Voltage (Nominal) | - | |
Mounting Type | Panel Mount, Snap-In, Right Angle | |
Termination Style | PC Pin | |
Ingress Protection | - | |
Features | - | |
Panel Cutout Dimensions | Rectangular - 26.14mm x 12.50mm | |
Operating Temperature | -20°C ~ 85°C | |
Mechanical Life | - | |
Electrical Life | 10,000 Cycles | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DF62J12S2AQF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DF62J12S2AQF is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of DF62J12S2AQF is new and unused, you can buy DF62J12S2AQF C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DF62J12S2AQF.
