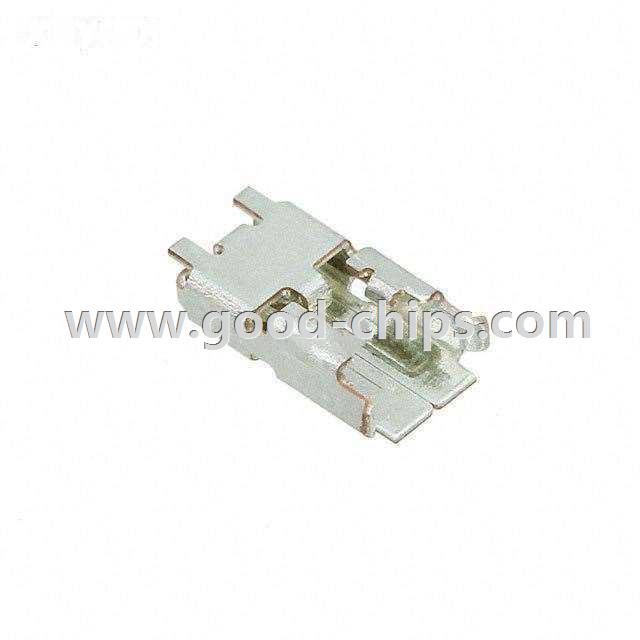

Manufacturer Part Number: | DF59M-1S-H(21) |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Solid State Lighting Connectors |
Available Quantity: | 15005 Pieces |
Unit Price: | Quote by Email |
Description: | SSL Connector 1 Position Receptacle Board to Cable/Wire Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DF59M-1S-H(21) Datasheet |
Internal Part Number | 898-DF59M-1S-H(21) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Lighting Product Selector | |
Online Catalog | DF59M Series | |
Category | Connectors, Interconnects | |
Family | Solid State Lighting Connectors | |
Manufacturer | Hirose Electric Co Ltd | |
Series | DF59M | |
Packaging | Digi-Reel® | |
Part Status | Active | |
Style | Board to Cable/Wire | |
Connector Type | Receptacle | |
Number of Positions | 1 | |
Mounting Type | Surface Mount | |
Termination | Solder | |
Pitch | - | |
Fastening Type | - | |
Features | - | |
Housing Color | Silver | |
Wire Gauge | - | |
Contact Material | - | |
Contact Finish | - | |
Housing Material | Copper Alloy | |
Operating Temperature | -40°C ~ 105°C | |
Voltage Rating | 300V | |
Current Rating | 6A | |
Ingress Protection | - | |
Mating Cycles | 20 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DF59M-1S-H(21) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DF59M-1S-H(21) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of DF59M-1S-H(21) is new and unused, you can buy DF59M-1S-H(21) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DF59M-1S-H(21).
