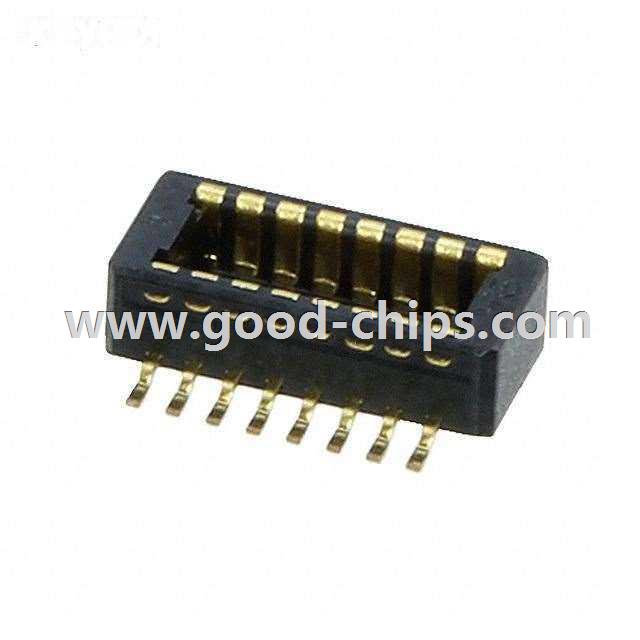

| Manufacturer Part Number: | DF40C-12DP-0.4V(58) |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 10610 Pieces |
| Unit Price: | Quote by Email |
| Description: | 12 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DF40C-12DP-0.4V(58) Datasheet |
| Internal Part Number | 898-DF40C-12DP-0.4V(58) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Board to Board and Board to FPC Connectors DF40 Board-to-Board/Board-to-FPC Connectors | |
| Featured Product | DF40 Series Micro-Miniture Board to Board Connectors | |
| Online Catalog | DF40 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | DF40 | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Connector Type | Plug, Outer Shroud Contacts | |
| Number of Positions | 12 | |
| Pitch | 0.016" (0.40mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Mated Stacking Heights | 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm | |
| Height Above Board | 0.045" (1.14mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DF40C-12DP-0.4V(58) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DF40C-12DP-0.4V(58) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of DF40C-12DP-0.4V(58) is new and unused, you can buy DF40C-12DP-0.4V(58) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DF40C-12DP-0.4V(58).
