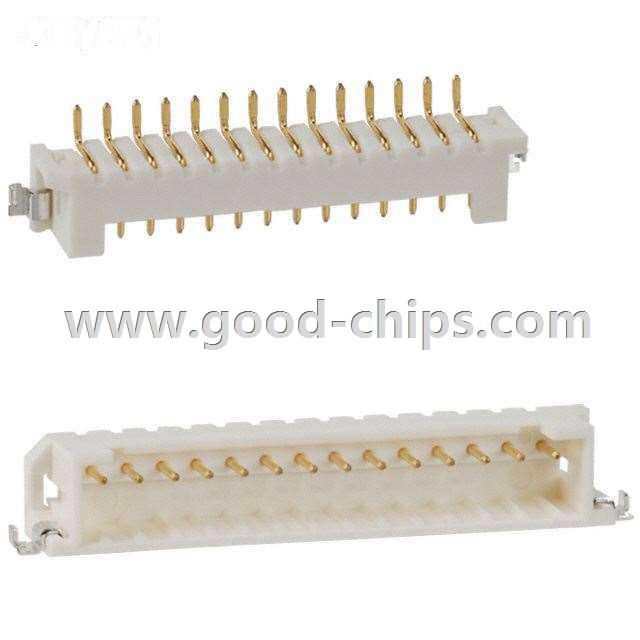

Manufacturer Part Number: | DF3DZ-14P-2H(51) |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 14 Positions Header, Shrouded Connector 0.079" (2.00mm) Surface Mount, Right Angle Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DF3DZ-14P-2H(51) Datasheet |
Internal Part Number | 898-DF3DZ-14P-2H(51) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Wire-to-Board Connector | |
PCN Part Status Change | DF3,DF13 Connector Series InsulationMaterial Feb/2016 | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | Hirose Electric Co Ltd | |
Series | DF3 | |
Packaging | Tape & Reel (TR) | |
Part Status | Discontinued | |
Contact Type | Male Pin | |
Connector Type | Header, Shrouded | |
Number of Positions | 14 | |
Number of Positions Loaded | All | |
Pitch | 0.079" (2.00mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Contact Mating Length | - | |
Mounting Type | Surface Mount, Right Angle | |
Termination | Solder | |
Fastening Type | - | |
Features | - | |
Contact Finish | Gold | |
Contact Finish Thickness | - | |
Color | Beige | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DF3DZ-14P-2H(51) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DF3DZ-14P-2H(51) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of DF3DZ-14P-2H(51) is new and unused, you can buy DF3DZ-14P-2H(51) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DF3DZ-14P-2H(51).
