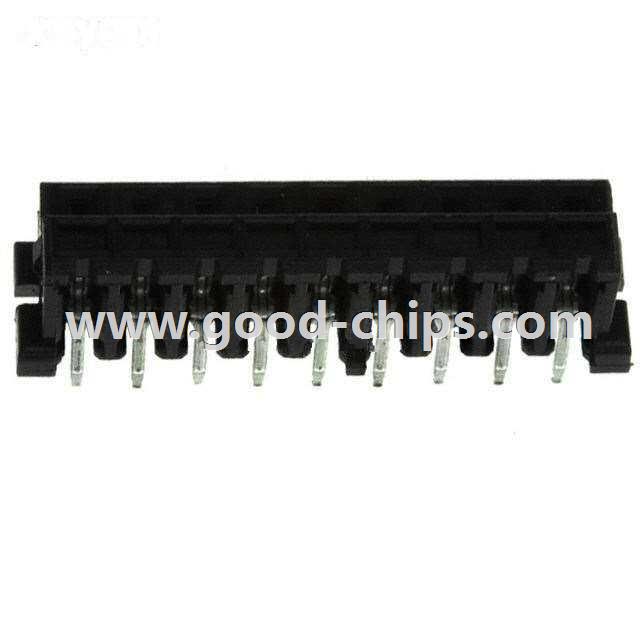

Manufacturer Part Number: | DF3-9S-2DSA(25) |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 9 Position Receptacle Connector 0.079" (2.00mm) Through Hole Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DF3-9S-2DSA(25) Datasheet |
Internal Part Number | 898-DF3-9S-2DSA(25) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Wire-to-Board Connector | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Receptacles, Female Sockets | |
Manufacturer | Hirose Electric Co Ltd | |
Series | DF3 | |
Packaging | Tube | |
Part Status | Active | |
Connector Type | Receptacle | |
Contact Type | Female Socket | |
Number of Positions | 9 | |
Number of Positions Loaded | All | |
Pitch | 0.079" (2.00mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Mounting Type | Through Hole | |
Termination | Solder | |
Fastening Type | Locking Ramp | |
Features | - | |
Contact Finish | Tin | |
Contact Finish Thickness | - | |
Color | Black | |
Standard Package | 24 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DF3-9S-2DSA(25) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DF3-9S-2DSA(25) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of DF3-9S-2DSA(25) is new and unused, you can buy DF3-9S-2DSA(25) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DF3-9S-2DSA(25).
