| Manufacturer Part Number: | DF2338VFC25 |
|---|---|
| Manufacturer: | Renesas Electronics America |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | H8S/2000 H8® H8S/2300 Microcontroller IC 16-Bit 25MHz 256KB (256K x 8) FLASH 144-QFP (20x20) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DF2338VFC25 Datasheet |
| Internal Part Number | 898-DF2338VFC25 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Renesas Electronics America | |
| Series | H8® H8S/2300 | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Core Processor | H8S/2000 | |
| Core Size | 16-Bit | |
| Speed | 25MHz | |
| Connectivity | SCI, SmartCard | |
| Peripherals | DMA, POR, PWM, WDT | |
| Number of I/O | 106 | |
| Program Memory Size | 256KB (256K x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 8K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 3 V ~ 3.6 V | |
| Data Converters | A/D 12x10b; D/A 4x8b | |
| Oscillator Type | Internal | |
| Operating Temperature | -20°C ~ 75°C (TA) | |

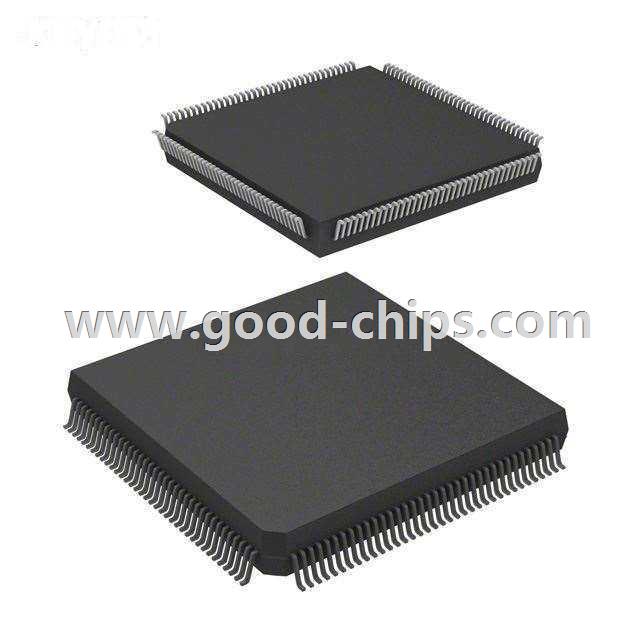

| Package / Case | 144-BFQFP | |
| Supplier Device Package | 144-QFP (20x20) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DF2338VFC25 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DF2338VFC25 is in stock for immediate shipping now. We are the distributor of Renesas Electronics America all series components. The condition of DF2338VFC25 is new and unused, you can buy DF2338VFC25 Renesas Electronics America with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DF2338VFC25.
