Manufacturer Part Number: | DF1EC-7P-2.5DSA(05) |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

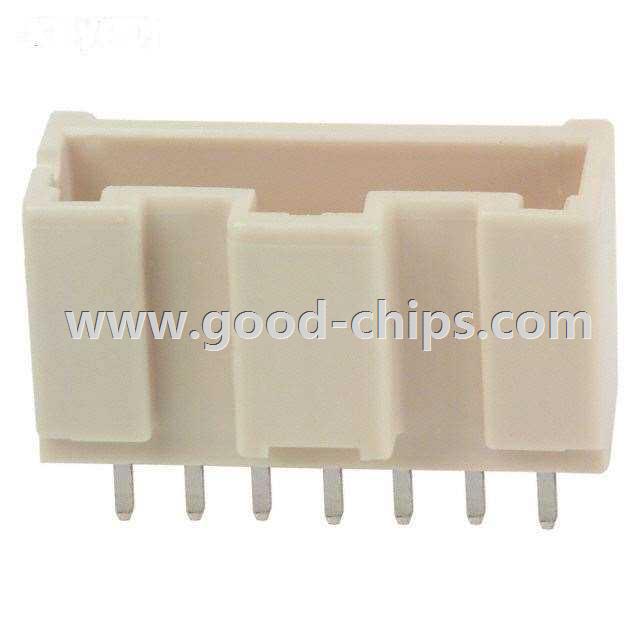

Description: | 7 Positions Header, Shrouded Connector 0.098" (2.50mm) Through Hole Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DF1EC-7P-2.5DSA(05) Datasheet |
Internal Part Number | 898-DF1EC-7P-2.5DSA(05) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | Hirose Electric Co Ltd | |
Series | DF1E | |
Packaging | Bulk | |
Part Status | Obsolete | |
Contact Type | Male Pin | |
Connector Type | Header, Shrouded | |
Number of Positions | 7 | |
Number of Positions Loaded | All | |
Pitch | 0.098" (2.50mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Contact Mating Length | 0.177" (4.50mm) | |
Mounting Type | Through Hole | |
Termination | Solder | |
Fastening Type | Latch Holder | |
Features | - | |
Contact Finish | Tin | |
Contact Finish Thickness | 39µin (1.00µm) | |
Color | Beige | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DF1EC-7P-2.5DSA(05) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DF1EC-7P-2.5DSA(05) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of DF1EC-7P-2.5DSA(05) is new and unused, you can buy DF1EC-7P-2.5DSA(05) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DF1EC-7P-2.5DSA(05).
