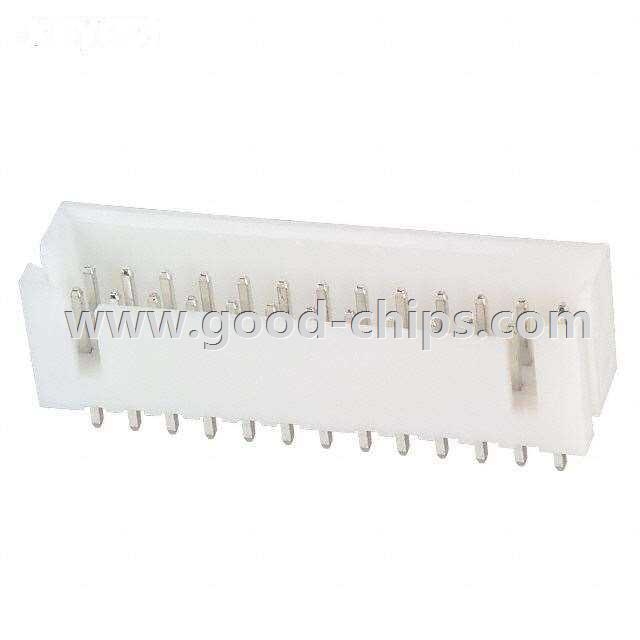

| Manufacturer Part Number: | DF1BZ-26DP-2.5DSA |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9051 Pieces |
| Unit Price: | Quote by Email |
| Description: | 26 Positions Header, Shrouded Connector 0.098" (2.50mm) Through Hole Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DF1BZ-26DP-2.5DSA Datasheet |
| Internal Part Number | 898-DF1BZ-26DP-2.5DSA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Wire-to-Board Connector | |
| Featured Product | DF1B Series | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | DF1B and DF1E Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | DF1B | |
| Packaging | Bulk | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 26 | |
| Number of Positions Loaded | All | |
| Pitch | 0.098" (2.50mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.098" (2.50mm) | |
| Contact Mating Length | 0.177" (4.50mm) | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | - | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Color | White | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DF1BZ-26DP-2.5DSA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DF1BZ-26DP-2.5DSA is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of DF1BZ-26DP-2.5DSA is new and unused, you can buy DF1BZ-26DP-2.5DSA Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DF1BZ-26DP-2.5DSA.
