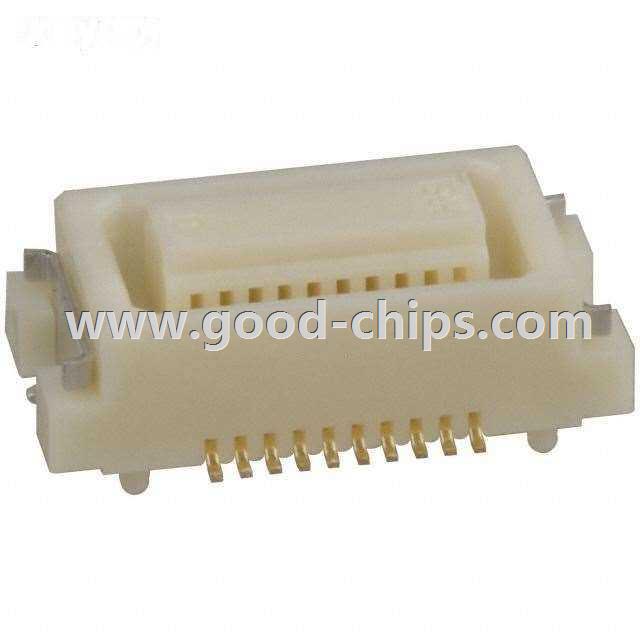

Manufacturer Part Number: | DF17(3.0)-20DS-0.5V(57) |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
Available Quantity: | 12010 Pieces |
Unit Price: | Quote by Email |
Description: | 20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DF17(3.0)-20DS-0.5V(57) Datasheet |
Internal Part Number | 898-DF17(3.0)-20DS-0.5V(57) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Board to Board and Board to FPC Connectors | |
Featured Product | Micro-Miniture Board to Board Connectors | |
Online Catalog | DF17 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
Manufacturer | Hirose Electric Co Ltd | |
Series | DF17 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Connector Type | Receptacle, Center Strip Contacts | |
Number of Positions | 20 | |
Pitch | 0.020" (0.50mm) | |
Number of Rows | 2 | |
Mounting Type | Surface Mount | |
Features | Board Guide, Solder Retention | |
Contact Finish | Gold | |
Contact Finish Thickness | - | |
Mated Stacking Heights | 5mm, 5.5mm, 7mm | |
Height Above Board | 0.138" (3.50mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DF17(3.0)-20DS-0.5V(57) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DF17(3.0)-20DS-0.5V(57) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of DF17(3.0)-20DS-0.5V(57) is new and unused, you can buy DF17(3.0)-20DS-0.5V(57) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DF17(3.0)-20DS-0.5V(57).
