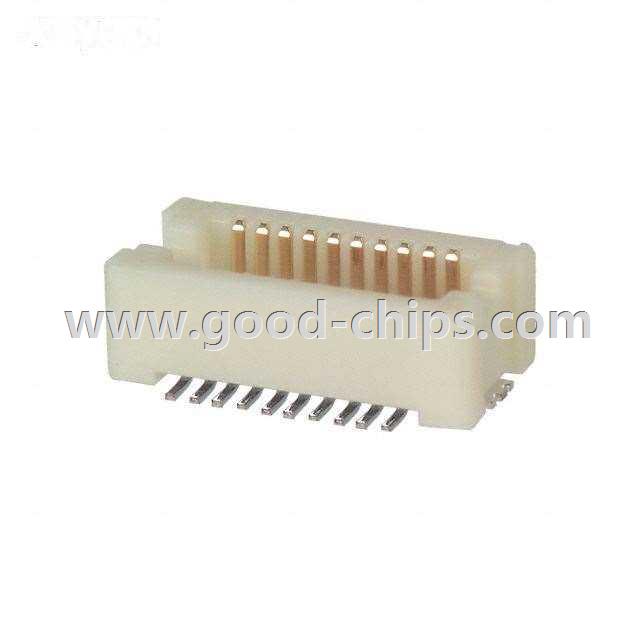

Manufacturer Part Number: | DF15B(3.2)-20DP-0.65V(50) |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DF15B(3.2)-20DP-0.65V(50) Datasheet |
Internal Part Number | 898-DF15B(3.2)-20DP-0.65V(50) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
Manufacturer | Hirose Electric Co Ltd | |
Series | DF15 | |
Packaging | Tube | |
Part Status | Obsolete | |
Connector Type | Header, Outer Shroud Contacts | |
Number of Positions | 20 | |
Pitch | 0.026" (0.65mm) | |
Number of Rows | 2 | |
Mounting Type | Surface Mount | |
Features | Solder Retention | |
Contact Finish | Gold | |
Contact Finish Thickness | - | |
Mated Stacking Heights | 4mm, 5mm | |
Height Above Board | 0.126" (3.20mm) | |
Standard Package | 48 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DF15B(3.2)-20DP-0.65V(50) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DF15B(3.2)-20DP-0.65V(50) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of DF15B(3.2)-20DP-0.65V(50) is new and unused, you can buy DF15B(3.2)-20DP-0.65V(50) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DF15B(3.2)-20DP-0.65V(50).
