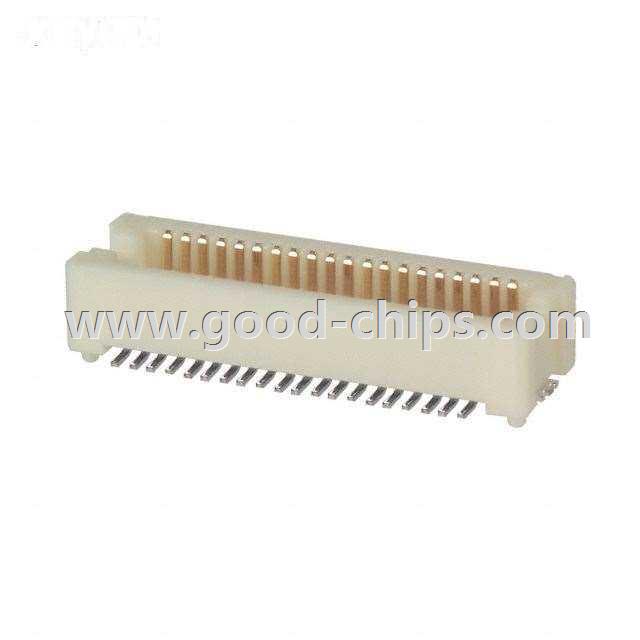

DF15(3.2)-40DP-0.65V(50)

DF15(3.2)-40DP-0.65V(50)
Manufacturer Part Number:DF15(3.2)-40DP-0.65V(50)
Manufacturer:
Product Category:Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:40 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: DF15(3.2)-40DP-0.65V(50) Datasheet
DF15(3.2)-40DP-0.65V(50)´s Parameters
Internal Part Number898-DF15(3.2)-40DP-0.65V(50)
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyRectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
ManufacturerHirose Electric Co Ltd
SeriesDF15
PackagingTube
Part StatusObsolete
Connector TypeHeader, Outer Shroud Contacts
Number of Positions40
Pitch0.026" (0.65mm)
Number of Rows2
Mounting TypeSurface Mount
FeaturesBoard Guide, Solder Retention
Contact FinishGold
Contact Finish Thickness-
Mated Stacking Heights4mm, 5mm
Height Above Board0.126" (3.20mm)
Standard Package 29
Weight0.001 KG
ApplicationEmail for details
Replacement PartDF15(3.2)-40DP-0.65V(50)
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

DF15(3.2)-40DP-0.65V(50) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of DF15(3.2)-40DP-0.65V(50) is new and unused, you can buy DF15(3.2)-40DP-0.65V(50) Hirose Electric Co Ltd with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for DF15(3.2)-40DP-0.65V(50).
