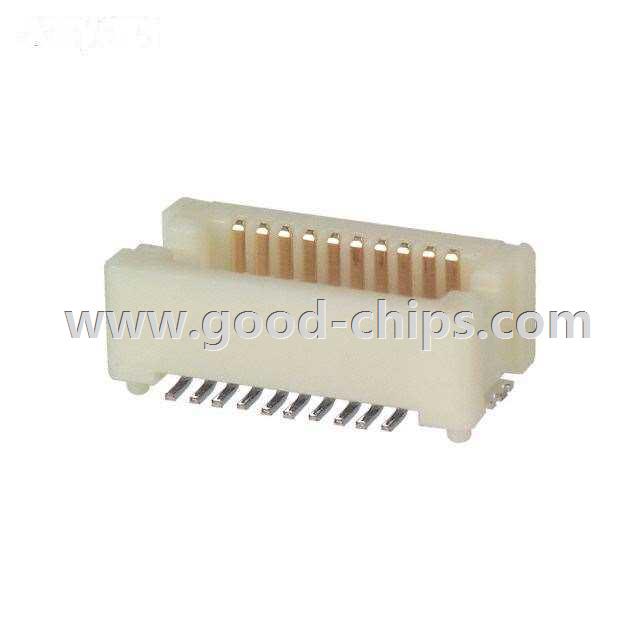

-20DP-0.65V(50).jpg)
| Manufacturer Part Number: | DF15(3.2)-20DP-0.65V(56) |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DF15(3.2)-20DP-0.65V(56) Datasheet |
| Internal Part Number | 898-DF15(3.2)-20DP-0.65V(56) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | DF15 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Connector Type | Header, Outer Shroud Contacts | |
| Number of Positions | 20 | |
| Pitch | 0.026" (0.65mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Board Guide, Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Mated Stacking Heights | 4mm, 5mm | |
| Height Above Board | 0.126" (3.20mm) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DF15(3.2)-20DP-0.65V(56) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DF15(3.2)-20DP-0.65V(56) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of DF15(3.2)-20DP-0.65V(56) is new and unused, you can buy DF15(3.2)-20DP-0.65V(56) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DF15(3.2)-20DP-0.65V(56).
