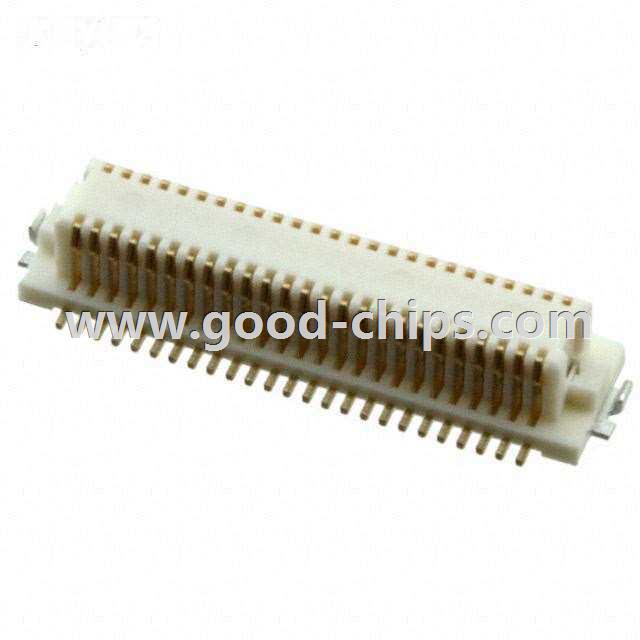

DF12B-50DS-0.5V(86)

DF12B-50DS-0.5V(86)
Manufacturer Part Number:DF12B-50DS-0.5V(86)
Manufacturer:
Product Category:Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Available Quantity:10010 Pieces
Unit Price:Quote by Email
Description:50 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: DF12B-50DS-0.5V(86) Datasheet
DF12B-50DS-0.5V(86)´s Parameters
Internal Part Number898-DF12B-50DS-0.5V(86)
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesBoard to Board and Board to FPC Connectors
Featured ProductDF12 Series
Micro-Miniture Board to Board Connectors
Online Catalog DF12 Series
CategoryConnectors, Interconnects
FamilyRectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
ManufacturerHirose Electric Co Ltd
SeriesDF12
PackagingTape & Reel (TR)
Part StatusActive
Connector TypeReceptacle, Center Strip Contacts
Number of Positions50
Pitch0.020" (0.50mm)
Number of Rows2
Mounting TypeSurface Mount
FeaturesSolder Retention
Contact FinishGold
Contact Finish Thickness8µin (0.20µm)
Mated Stacking Heights3.5mm, 4mm, 5mm
Height Above Board0.106" (2.70mm)
Standard Package 1,000
Weight0.001 KG
ApplicationEmail for details
Replacement PartDF12B-50DS-0.5V(86)
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

DF12B-50DS-0.5V(86) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of DF12B-50DS-0.5V(86) is new and unused, you can buy DF12B-50DS-0.5V(86) Hirose Electric Co Ltd with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for DF12B-50DS-0.5V(86).
