Manufacturer Part Number: | DF11-20DP-2DS(24) |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 10468 Pieces |
Unit Price: | Quote by Email |

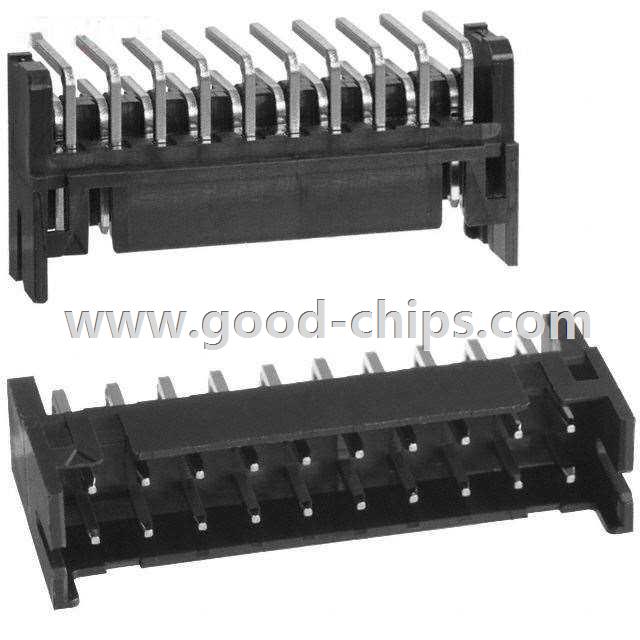

Description: | 20 Positions Header, Shrouded Connector 0.079" (2.00mm) Through Hole, Right Angle Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DF11-20DP-2DS(24) Datasheet |
Internal Part Number | 898-DF11-20DP-2DS(24) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Wire-to-Board Connector | |
Featured Product | DF11 Series | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | DF11 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | Hirose Electric Co Ltd | |
Series | DF11 | |
Packaging | Tube | |
Part Status | Active | |
Contact Type | Male Pin | |
Connector Type | Header, Shrouded | |
Number of Positions | 20 | |
Number of Positions Loaded | All | |
Pitch | 0.079" (2.00mm) | |
Number of Rows | 2 | |
Row Spacing | 0.079" (2.00mm) | |
Contact Mating Length | 0.118" (3.00mm) | |
Mounting Type | Through Hole, Right Angle | |
Termination | Solder | |
Fastening Type | Detent Lock | |
Features | - | |
Contact Finish | Tin | |
Contact Finish Thickness | - | |
Color | Black | |
Standard Package | 22 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DF11-20DP-2DS(24) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DF11-20DP-2DS(24) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of DF11-20DP-2DS(24) is new and unused, you can buy DF11-20DP-2DS(24) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DF11-20DP-2DS(24).
