| Manufacturer Part Number: | DEMO-AD5700D2Z |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9027 Pieces |
| Unit Price: | Quote by Email |

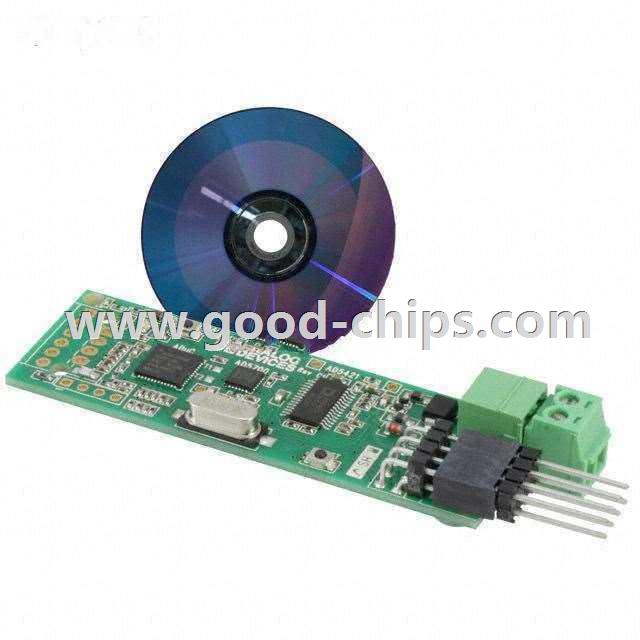

| Description: | AD5421, AD5700, ADuCM360 Circuits from the Lab™ Series Interface, 4 ~ 20mA Transmitter Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DEMO-AD5700D2Z Datasheet |
| Internal Part Number | 898-DEMO-AD5700D2Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Featured Product | CN0267 Field Instrument | |
| Online Catalog | AD5700 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Analog Devices Inc. | |
| Series | Circuits from the Lab™ | |
| Part Status | Active | |
| Main Purpose | Interface, 4 ~ 20mA Transmitter | |
| Embedded | Yes, MCU, 32-Bit | |
| Utilized IC / Part | AD5421, AD5700, ADuCM360 | |
| Primary Attributes | HART® Interface | |
| Secondary Attributes | - | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DEMO-AD5700D2Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DEMO-AD5700D2Z is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of DEMO-AD5700D2Z is new and unused, you can buy DEMO-AD5700D2Z Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DEMO-AD5700D2Z.
