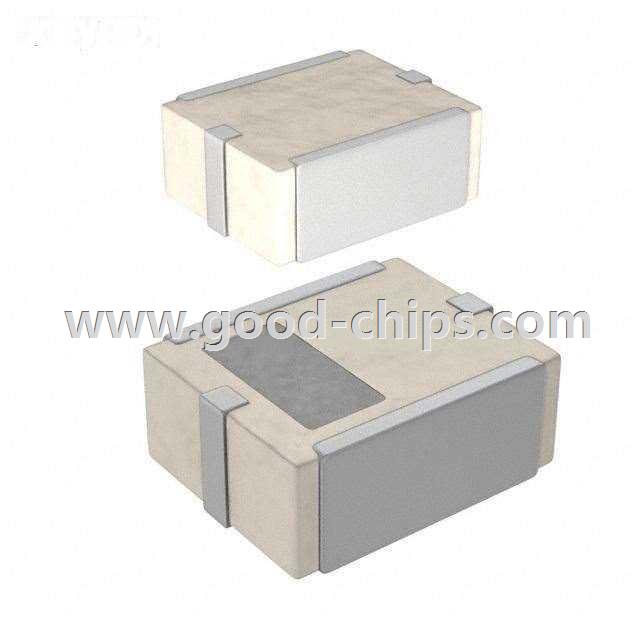

| Manufacturer Part Number: | DEA252450BT-7046A1 |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | RF Filters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | FILTER BANDPASS 2.4 GHZ SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DEA252450BT-7046A1 Datasheet |
| Internal Part Number | 898-DEA252450BT-7046A1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Filters | |
| Family | RF Filters | |
| Manufacturer | TDK Corporation | |
| Series | DEA | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Frequency | 2.45GHz Center | |
| Bandwidth | 100MHz | |
| Filter Type | Band Pass | |
| Ripple | - | |
| Insertion Loss | 2.6dB | |
| Package / Case | 1008 (2520 Metric), 6 PC Pad | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.039" (1.00mm) | |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DEA252450BT-7046A1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DEA252450BT-7046A1 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of DEA252450BT-7046A1 is new and unused, you can buy DEA252450BT-7046A1 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DEA252450BT-7046A1.
