Manufacturer Part Number: | DDZ3V0ASF-7 |
---|---|
Manufacturer: | Diodes Incorporated |
Product Category: | Diodes - Zener - Single |
Available Quantity: | 12010 Pieces |
Unit Price: | Quote by Email |
Description: | Zener Diode 2.96V 500mW ±4% Surface Mount SOD-323F |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DDZ3V0ASF-7 Datasheet |
Internal Part Number | 898-DDZ3V0ASF-7 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RoHS Cert of Compliance | |
Online Catalog | Surface Mount Precision Zener Diode | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Zener - Single | |
Manufacturer | Diodes Incorporated | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Voltage - Zener (Nom) (Vz) | 2.96V | |
Tolerance | ±4% | |
Power - Max | 500mW | |
Impedance (Max) (Zzt) | 120 Ohm | |
Current - Reverse Leakage @ Vr | 50µA @ 1V | |
Voltage - Forward (Vf) (Max) @ If | 900mV @ 10mA | |
Operating Temperature | -65°C ~ 150°C | |
Mounting Type | Surface Mount | |

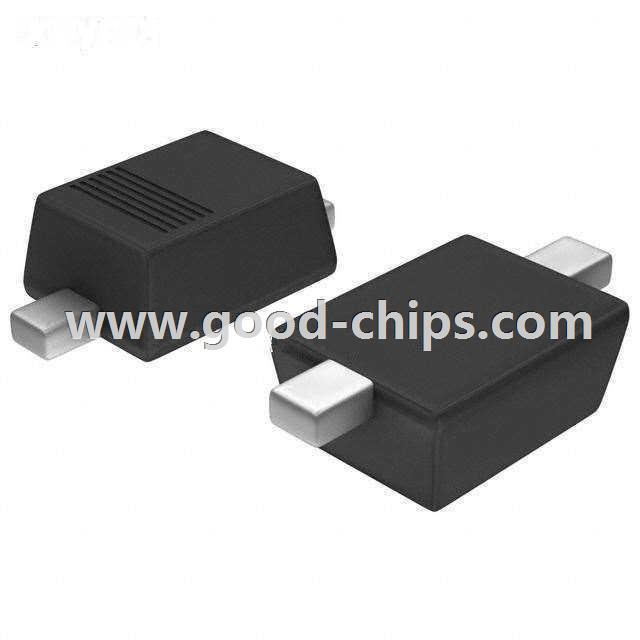

Package / Case | SC-90, SOD-323F | |
Supplier Device Package | SOD-323F | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DDZ3V0ASF-7 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DDZ3V0ASF-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of DDZ3V0ASF-7 is new and unused, you can buy DDZ3V0ASF-7 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DDZ3V0ASF-7.
