| Manufacturer Part Number: | DDMC-24H7P-J-K87 |
|---|---|
| Manufacturer: | ITT Cannon, LLC |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

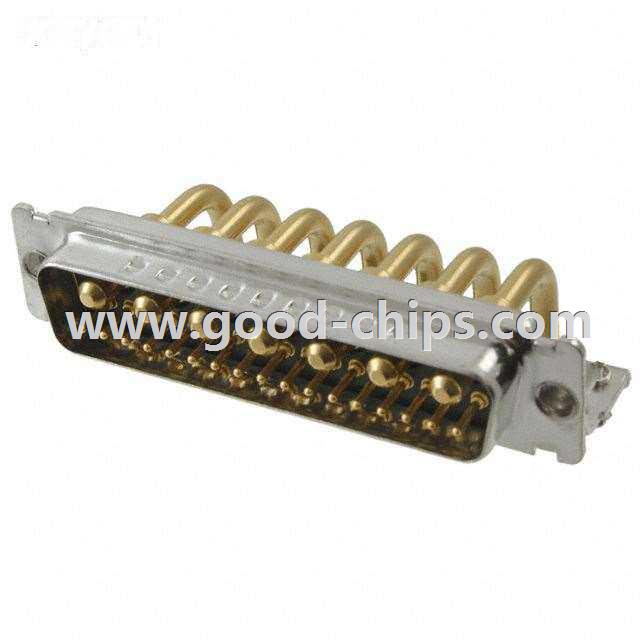

| Description: | 24 (17 + 7 Power) Position D-Sub, Combo Plug, Male Pins Connector, Panel Mount, Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DDMC-24H7P-J-K87 Datasheet |
| Internal Part Number | 898-DDMC-24H7P-J-K87 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | D-Subminiature Connector Series | |
| Online Catalog | Combo D® D M Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | ITT Cannon, LLC | |
| Series | Combo D®, D*M | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | D-Sub, Combo | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 24 (17 + 7 Power) | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 5 (DD, D) - 24W7 | |
| Contact Type | Signal and Power | |
| Mounting Type | Panel Mount, Through Hole, Right Angle | |
| Flange Feature | Board Side (4-40) | |
| Termination | Solder | |
| Features | Board Lock, Grounding Indents, Mounting Brackets, Shielded | |
| Shell Material, Finish | Steel, Tin-Lead Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | - | |
| Current Rating | 40A, 7.5A | |
| Housing Material | Polyester | |
| Color | Black | |
| Standard Package | 15 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DDMC-24H7P-J-K87 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DDMC-24H7P-J-K87 is in stock for immediate shipping now. We are the distributor of ITT Cannon, LLC all series components. The condition of DDMC-24H7P-J-K87 is new and unused, you can buy DDMC-24H7P-J-K87 ITT Cannon, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DDMC-24H7P-J-K87.
