Manufacturer Part Number: | DD-DB1-AV202C |
---|---|
Manufacturer: | Matrix Orbital |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

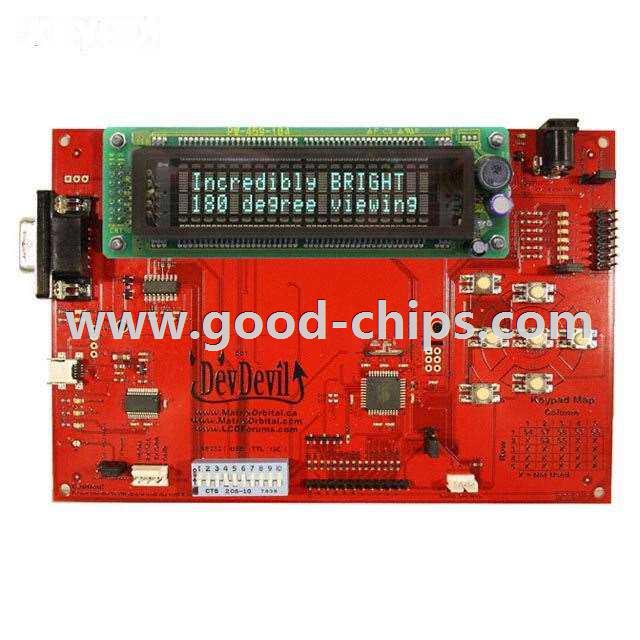

Description: | AL202C Dev Devil Series Displays, VFD Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DD-DB1-AV202C Datasheet |
Internal Part Number | 898-DD-DB1-AV202C | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
PCN Obsolescence/ EOL | DevDevil 20x2,20x4 LCD/VFD 21/Oct/2013 | |
PCN Design/Specification | 12C Displays Firmware Update 11/Oct/2011 | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Matrix Orbital | |
Series | Dev Devil | |
Part Status | Obsolete | |
Main Purpose | Displays, VFD | |
Embedded | Yes, ASIC | |
Utilized IC / Part | AL202C | |
Primary Attributes | 20 x 4 Display, Yellow/Green Text Grey Background | |
Secondary Attributes | GUI, mini USB | |
Supplied Contents | Board, Cable | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DD-DB1-AV202C | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DD-DB1-AV202C is in stock for immediate shipping now. We are the distributor of Matrix Orbital all series components. The condition of DD-DB1-AV202C is new and unused, you can buy DD-DB1-AV202C Matrix Orbital with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DD-DB1-AV202C.
