| Manufacturer Part Number: | DD-DB1-AL204A |
|---|---|
| Manufacturer: | Matrix Orbital |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

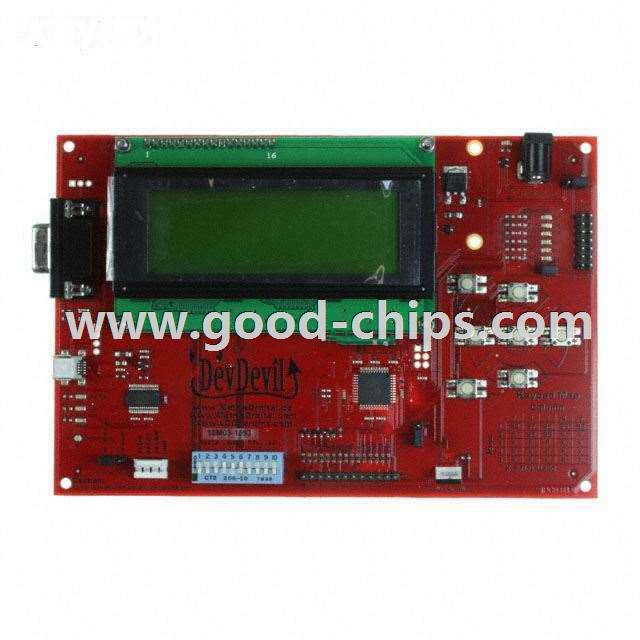

| Description: | AL204A Dev Devil Series Displays, LCD Display Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DD-DB1-AL204A Datasheet |
| Internal Part Number | 898-DD-DB1-AL204A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Obsolescence/ EOL | DevDevil 20x2,20x4 LCD/VFD 21/Oct/2013 | |
| PCN Design/Specification | 12C Displays Firmware Update 11/Oct/2011 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Matrix Orbital | |
| Series | Dev Devil | |
| Part Status | Obsolete | |
| Main Purpose | Displays, LCD Display | |
| Embedded | Yes, ASIC | |
| Utilized IC / Part | AL204A | |
| Primary Attributes | 20 x 4 Display, Black Text Yellow/Green Background | |
| Secondary Attributes | GUI, mini USB | |
| Supplied Contents | Board, Cable | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DD-DB1-AL204A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DD-DB1-AL204A is in stock for immediate shipping now. We are the distributor of Matrix Orbital all series components. The condition of DD-DB1-AL204A is new and unused, you can buy DD-DB1-AL204A Matrix Orbital with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DD-DB1-AL204A.
