Manufacturer Part Number: | DCR021205P-U |
---|---|
Manufacturer: | Texas Instruments |
Product Category: | DC DC Converters |
Available Quantity: | 9513 Pieces |
Unit Price: | Quote by Email |
Description: | IC REG ISOLATED 5V 0.4A 10SOP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DCR021205P-U Datasheet |
Internal Part Number | 898-DCR021205P-U | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Manufacturer Product Page | DCR021205P-U Specifications | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | DCR02 Series | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Texas Instruments | |
Series | DCR02 | |
Packaging | Tube | |
Part Status | Active | |
Type | Isolated Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 10.8V | |
Voltage - Input (Max) | 13.2V | |
Voltage - Output 1 | 5V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 400mA | |
Power (Watts) - Manufacture Series | 2W | |
Voltage - Isolation | 1kV (1000V) | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OTP, SCP | |
Mounting Type | Surface Mount | |

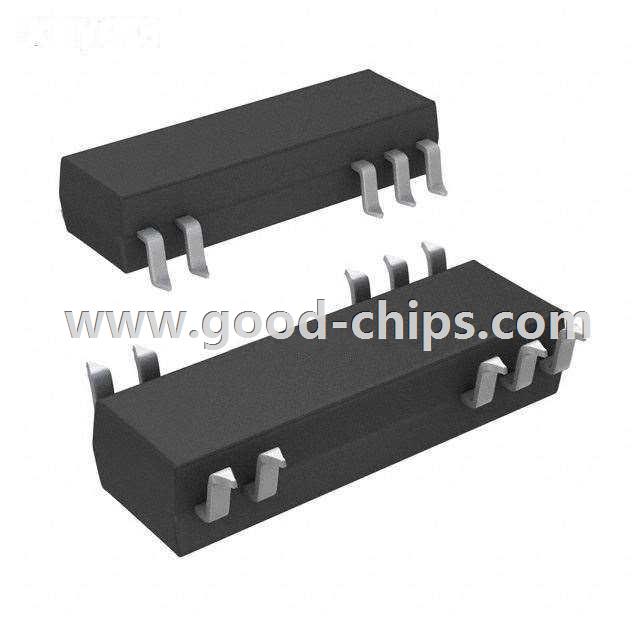

Package / Case | 18-SOP (10 Leads) | |
Size / Dimension | 0.90" L x 0.28" W x 0.21" H (22.9mm x 7.1mm x 5.3mm) | |
Operating Temperature | -40°C ~ 70°C | |
Efficiency | - | |
Power (Watts) - Max | 2W | |
Standard Package | 20 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DCR021205P-U | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DCR021205P-U is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of DCR021205P-U is new and unused, you can buy DCR021205P-U Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DCR021205P-U.
