| Manufacturer Part Number: | DCPL-WB-00D3 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | RF Directional Coupler |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Directional Coupler W-CDMA 824MHz ~ 2.17GHz 37dB 8-UFBGA, FCBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DCPL-WB-00D3 Datasheet |
| Internal Part Number | 898-DCPL-WB-00D3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | DCPL-WB-00D3 View All Specifications | |
| Product Training Modules | Internet of Things and the ST Portfolio of Wireless Modules Dynamic NFC / RFID Tag WiFi Modules Overview | |
| Design Resources | IoT Product Selector | |
| Category | RF/IF and RFID | |
| Family | RF Directional Coupler | |
| Manufacturer | STMicroelectronics | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Coupler Type | Dual Band, Single Path | |
| Frequency | 824MHz ~ 2.17GHz | |
| Coupling Factor | 37dB | |
| Applications | W-CDMA | |
| Insertion Loss | 0.2dB | |
| Power - Max | - | |
| Isolation | - | |
| Return Loss | 15dB | |

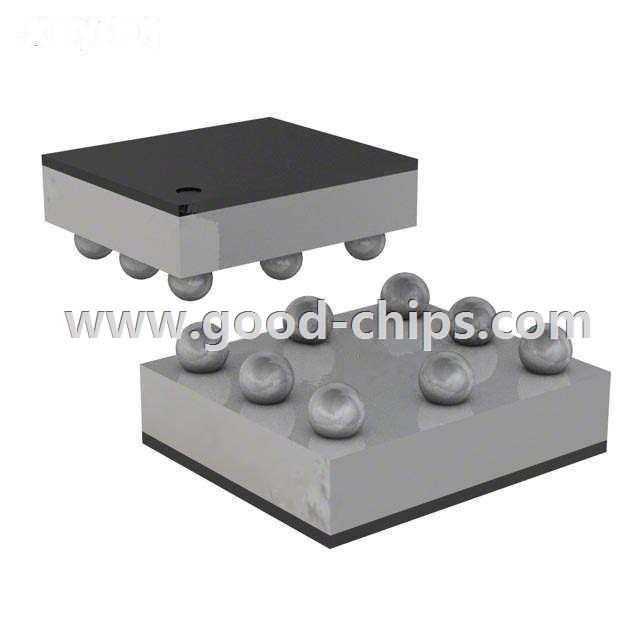

| Package / Case | 8-UFBGA, FCBGA | |
| Supplier Device Package | 8-FlipChip | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DCPL-WB-00D3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DCPL-WB-00D3 is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of DCPL-WB-00D3 is new and unused, you can buy DCPL-WB-00D3 STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DCPL-WB-00D3.
