| Manufacturer Part Number: | DCB010-TB-E |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 1 Pair Common Cathode Standard 80V 100mA Surface Mount SC-96 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DCB010-TB-E Datasheet |
| Internal Part Number | 898-DCB010-TB-E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Not Recommended For New Designs | |
| Diode Configuration | 1 Pair Common Cathode | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 80V | |
| Current - Average Rectified (Io) (per Diode) | 100mA | |
| Voltage - Forward (Vf) (Max) @ If | 1.2V @ 100mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 4ns | |
| Current - Reverse Leakage @ Vr | 100nA @ 80V | |
| Mounting Type | Surface Mount | |

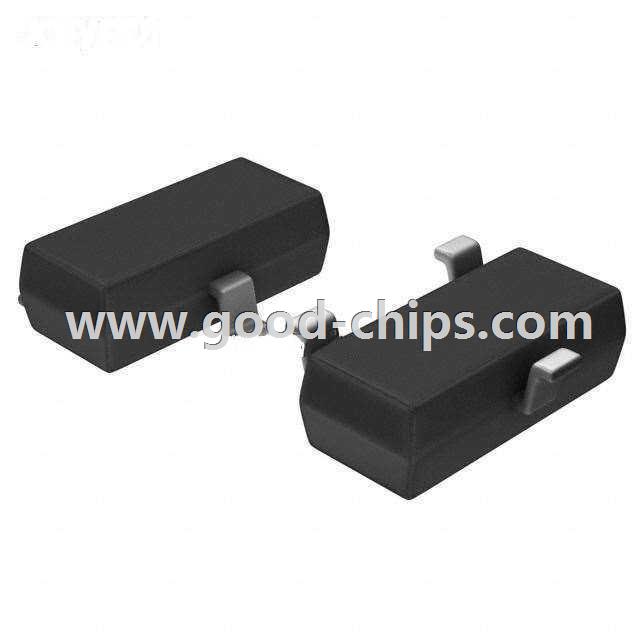

| Package / Case | SC-96 | |
| Supplier Device Package | 3-CP | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DCB010-TB-E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DCB010-TB-E is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of DCB010-TB-E is new and unused, you can buy DCB010-TB-E ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DCB010-TB-E.
