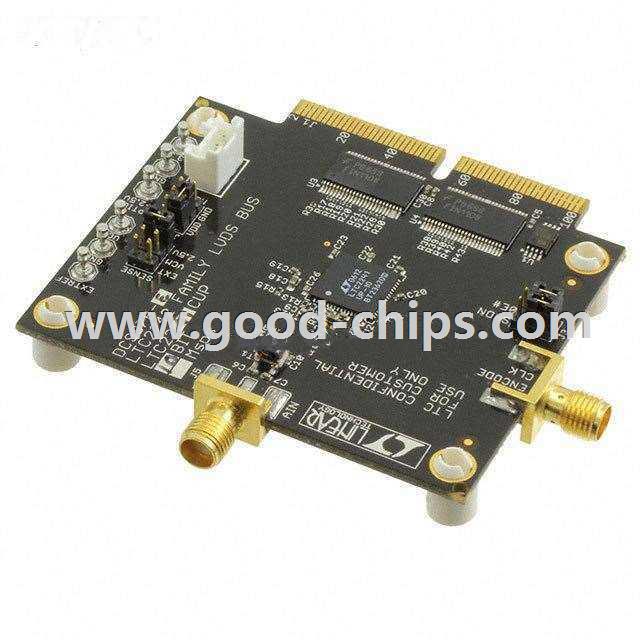

Manufacturer Part Number: | DC997B-F |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation Boards - Analog to Digital Converters (ADCs) |
Available Quantity: | 9011 Pieces |
Unit Price: | Quote by Email |
Description: | LTC2240-10 - 10 Bit 170M Samples per Second Analog to Digital Converter (ADC) Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC997B-F Datasheet |
Internal Part Number | 898-DC997B-F | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Software Download | PScope | |
Design Resources | DC997B Design Files DC997B Schematic | |
Online Catalog | LTC2240-10/12, LTC2241-10/12 and LTC2242-10/12 Demonstration Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Analog to Digital Converters (ADCs) | |
Manufacturer | Linear Technology | |
Series | - | |
Part Status | Active | |
Number of A/D Converters | 1 | |
Number of Bits | 10 | |
Sampling Rate (Per Second) | 170M | |
Data Interface | CMOS, LVDS, Parallel | |
Input Range | 2 Vpp | |
Power (Typ) @ Conditions | 570mW @ 170MSPS | |
Utilized IC / Part | LTC2240-10 | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC997B-F | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC997B-F is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC997B-F is new and unused, you can buy DC997B-F Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC997B-F.
