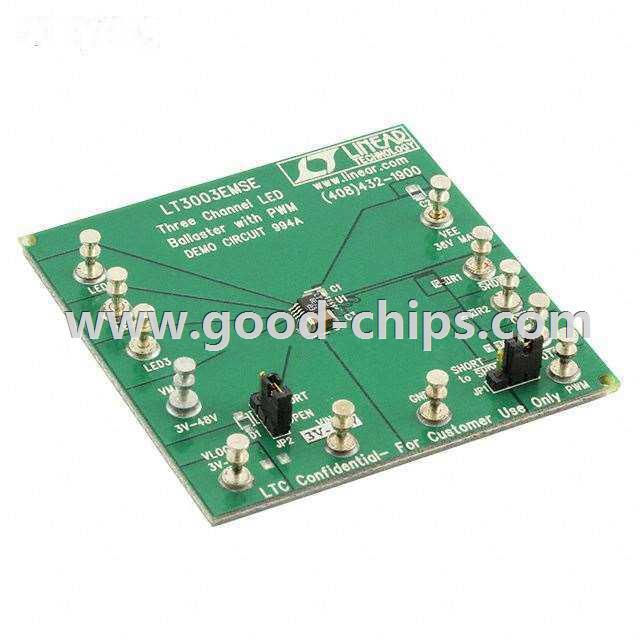

Manufacturer Part Number: | DC994A |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation Boards - LED Drivers |
Available Quantity: | 9014 Pieces |
Unit Price: | Quote by Email |
Description: | LT3003 True Color PWM™ Series 3, Non-Isolated Output LED Driver Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC994A Datasheet |
Internal Part Number | 898-DC994A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | DC994A Design File DC994A Schematic Development Tool Selector Lighting Product Selector | |
Online Catalog | LT3003 Demonstration Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - LED Drivers | |
Manufacturer | Linear Technology | |
Series | True Color PWM™ | |
Part Status | Active | |
Current - Output / Channel | 350mA | |
Outputs and Type | 3, Non-Isolated | |
Voltage - Output | - | |
Features | Dimmable | |
Voltage - Input | 3.3V, 5V | |
Supplied Contents | Board | |
Utilized IC / Part | LT3003 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC994A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC994A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC994A is new and unused, you can buy DC994A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC994A.
