Manufacturer Part Number: | DC980A/B |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9015 Pieces |
Unit Price: | Quote by Email |

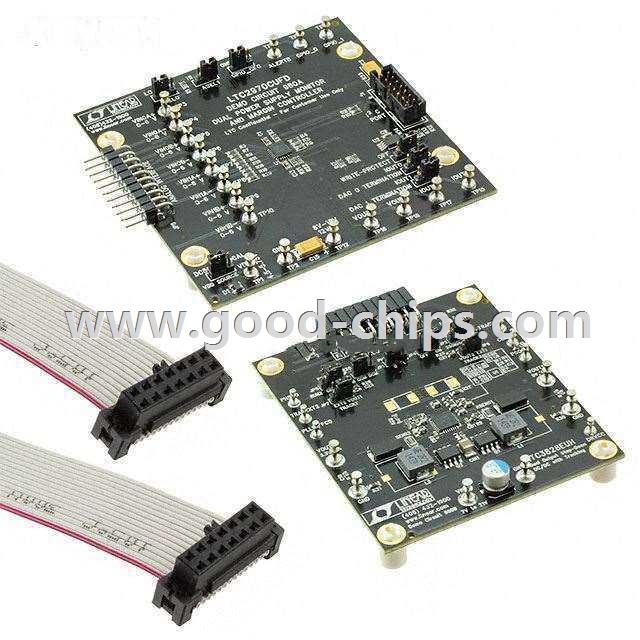

Description: | LTC2970 - Power Management, Power Supply Supervisor/Tracker/Sequencer Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC980A/B Datasheet |
Internal Part Number | 898-DC980A/B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Software Download | QuikEval System LTpowerPlay LTSketchbook Arduino 1.04 IDE | |
Design Resources | DC980A/B Design Files DC980A Schematic DC980B Schematic | |
Online Catalog | LTC2970 and LTC3828 Demonstration Board | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Linear Technology | |
Series | - | |
Part Status | Active | |
Main Purpose | Power Management, Power Supply Supervisor/Tracker/Sequencer | |
Embedded | - | |
Utilized IC / Part | LTC2970 | |
Primary Attributes | 2-Channel (Dual) | |
Secondary Attributes | Graphical User Interface | |
Supplied Contents | 2 Boards | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC980A/B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC980A/B is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC980A/B is new and unused, you can buy DC980A/B Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC980A/B.
