| Manufacturer Part Number: | DC954A-C |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - Op Amps |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |

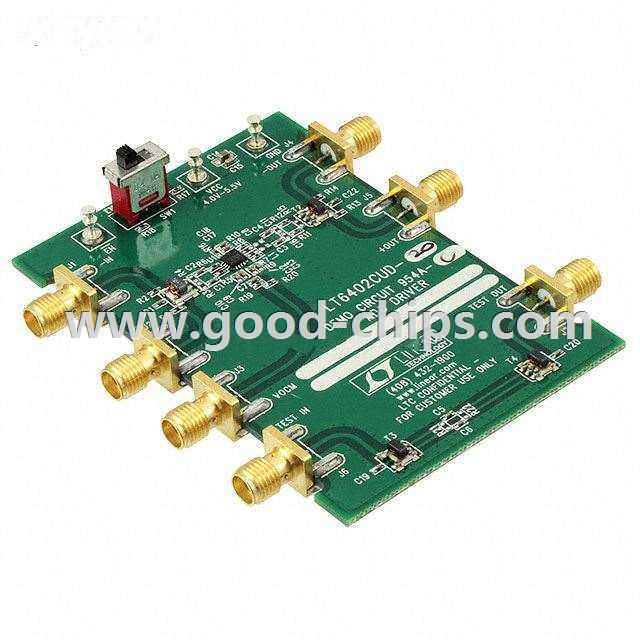

| Description: | LT6402-20 2 - Dual Channels per IC Differential Amplifier Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC954A-C Datasheet |
| Internal Part Number | 898-DC954A-C | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Online Catalog | LT6402-20 Demonstration Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Op Amps | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Channels per IC | 2 - Dual | |
| Amplifier Type | Differential | |
| Output Type | Differential | |
| Slew Rate | 400 V/µs | |
| -3db Bandwidth | 300MHz | |
| Current - Output / Channel | 35mA | |
| Operating Temperature | 0°C ~ 70°C | |
| Current - Supply (Main IC) | 30mA | |
| Voltage - Supply, Single/Dual (±) | 4 V ~ 5.5 V, ±2 V ~ 2.5 V | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | LT6402-20 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC954A-C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC954A-C is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC954A-C is new and unused, you can buy DC954A-C Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC954A-C.
