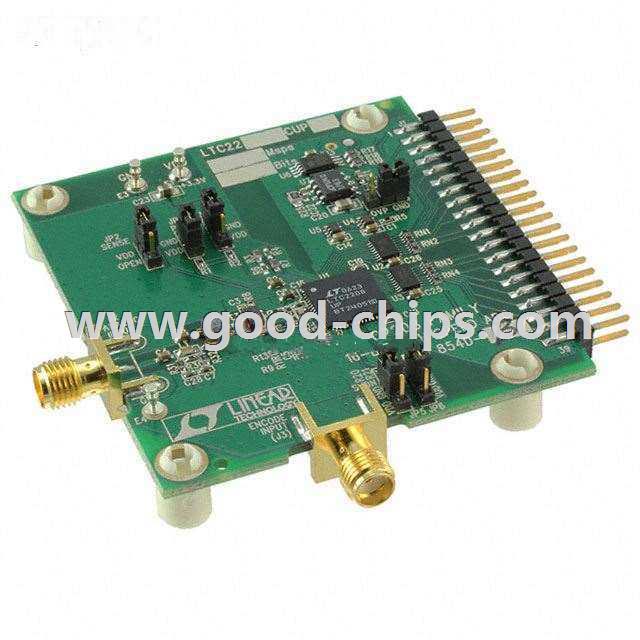

| Manufacturer Part Number: | DC854D-B |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - Analog to Digital Converters (ADCs) |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |
| Description: | LTC2208 - 16 Bit 130M Samples per Second Analog to Digital Converter (ADC) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC854D-B Datasheet |
| Internal Part Number | 898-DC854D-B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | PScope | |
| Design Resources | DC854D Quick Start Guide DC854D Design Files DC854D Schematic | |
| Online Catalog | LTC2208/LTC2208-14/LTC2217/LTC2216/LTC2215 Demonstration Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Analog to Digital Converters (ADCs) | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Number of A/D Converters | 1 | |
| Number of Bits | 16 | |
| Sampling Rate (Per Second) | 130M | |
| Data Interface | Parallel | |
| Input Range | 2.25 Vpp | |
| Power (Typ) @ Conditions | 1.498W @ 130MSPS | |
| Utilized IC / Part | LTC2208 | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC854D-B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC854D-B is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC854D-B is new and unused, you can buy DC854D-B Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC854D-B.
