Manufacturer Part Number: | DC851A-A |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation Boards - Analog to Digital Converters (ADCs) |
Available Quantity: | 9013 Pieces |
Unit Price: | Quote by Email |

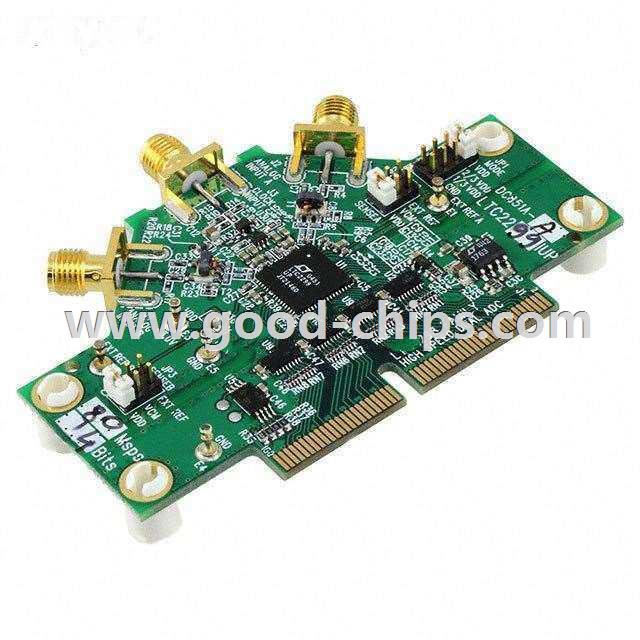

Description: | LTC2299 - 14 Bit 80M Samples per Second Analog to Digital Converter (ADC) Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC851A-A Datasheet |
Internal Part Number | 898-DC851A-A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Software Download | PScope | |
Design Resources | DC851A Design File DC851A Schematic Development Tool Selector | |
Featured Product | High Speed ADCs | |
Online Catalog | DC851 Demo Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Analog to Digital Converters (ADCs) | |
Manufacturer | Linear Technology | |
Series | - | |
Part Status | Active | |
Number of A/D Converters | 2 | |
Number of Bits | 14 | |
Sampling Rate (Per Second) | 80M | |
Data Interface | Parallel | |
Input Range | 1 ~ 2 Vpp | |
Power (Typ) @ Conditions | 444mW @ 80MSPS | |
Utilized IC / Part | LTC2299 | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC851A-A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC851A-A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC851A-A is new and unused, you can buy DC851A-A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC851A-A.
