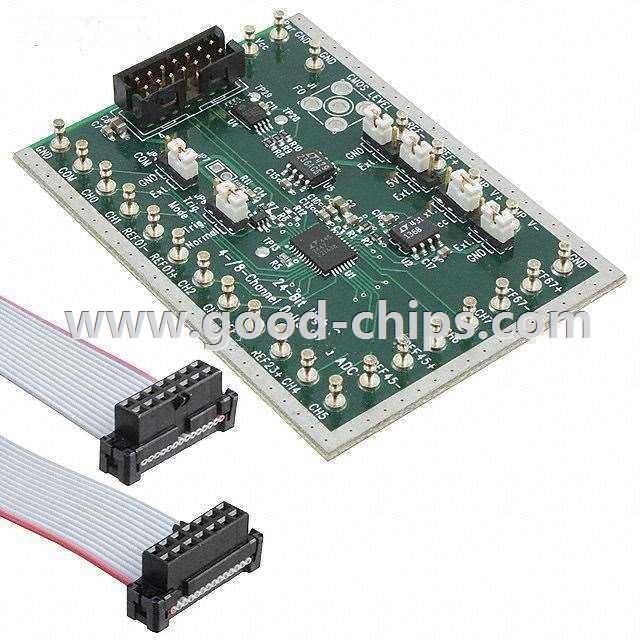

Manufacturer Part Number: | DC846A |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation Boards - Analog to Digital Converters (ADCs) |
Available Quantity: | 9013 Pieces |
Unit Price: | Quote by Email |
Description: | LTC2447 - 24 Bit 8k Samples per Second Analog to Digital Converter (ADC) Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC846A Datasheet |
Internal Part Number | 898-DC846A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Software Download | QuikEval System | |
Design Resources | DC846A Design File DC846A Schematic Development Tool Selector | |
Featured Product | No Latency Delta Sigma ADCs | |
Online Catalog | LTC2447 Evaluation Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Analog to Digital Converters (ADCs) | |
Manufacturer | Linear Technology | |
Series | - | |
Part Status | Active | |
Number of A/D Converters | 1 | |
Number of Bits | 24 | |
Sampling Rate (Per Second) | 8k | |
Data Interface | MICROWIRE™, Serial, SPI™ | |
Input Range | - | |
Power (Typ) @ Conditions | - | |
Utilized IC / Part | LTC2447 | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC846A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC846A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC846A is new and unused, you can buy DC846A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC846A.
