| Manufacturer Part Number: | DC809A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - Digital to Analog Converters (DACs) |
| Available Quantity: | 9022 Pieces |
| Unit Price: | Quote by Email |

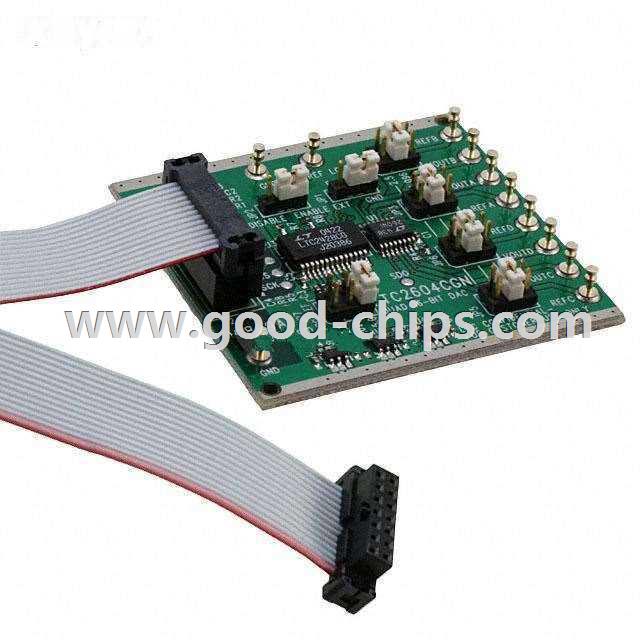

| Description: | LTC2604 16 Bit Digital to Analog Converter (DAC) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC809A Datasheet |
| Internal Part Number | 898-DC809A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | QuikEval System | |
| Design Resources | DC809A Design File DC809A Schematic Development Tool Selector | |
| Featured Product | Voltage Output DACs | |
| Online Catalog | LTC2604 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Digital to Analog Converters (DACs) | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Number of DAC's | 4 | |
| Number of Bits | 16 | |
| Sampling Rate (Per Second) | - | |
| Data Interface | MICROWIRE™, Serial, SPI™ | |
| Settling Time | 10µs | |
| DAC Type | Voltage | |
| Operating Temperature | 0°C ~ 70°C | |
| Supplied Contents | Board | |
| Utilized IC / Part | LTC2604 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC809A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC809A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC809A is new and unused, you can buy DC809A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC809A.
